Product Model

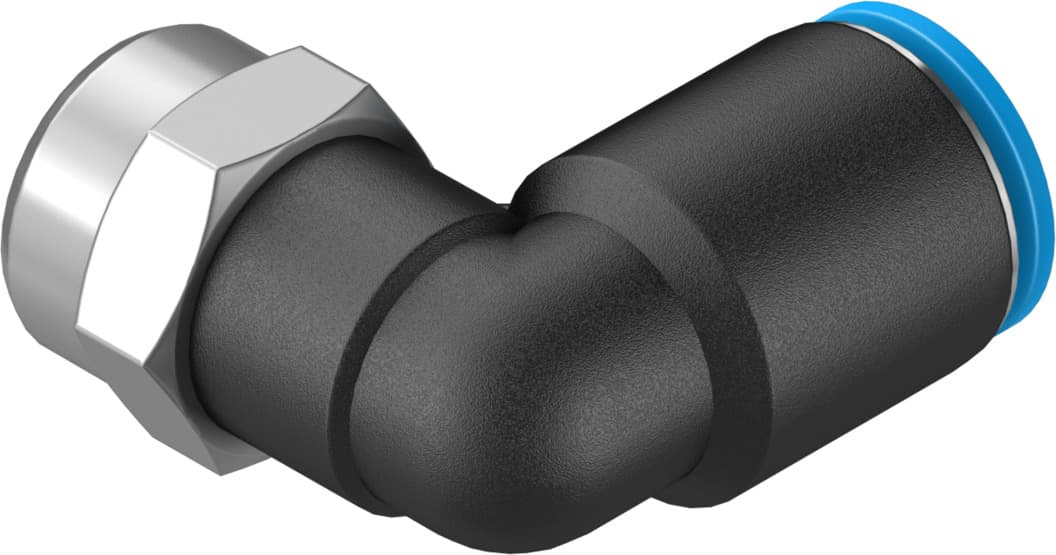

qslf-1/8-8-b
Selling Points
- 1The QSLF-1/8-8-B push-in L-fitting offers a versatile 360° orientable design, allowing for easy installation in any position.
- 2Equipped with an internal thread and external hexagon, this fitting provides a secure and easy-to-use connection.
- 3Featuring a corrosion resistance class of 1, the QSLF-1/8-8-B is designed to withstand low corrosion stress, ensuring long-lasting performance.
- 4Suitable for operating pressures from -0.95 to 6 bar, this fitting is ideal for a wide range of pneumatic applications.
- 5Meets ISO 8573-1:2010 standards for compressed air and manufacturer's declaration for water usage, ensuring compatibility with various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6mm |
Mounting position | Any | Design | L-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 7Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 16g |
Type of mounting | External hexagon, AF 14 | Pneumatic connection 1 | Internal thread G1/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153276 |
