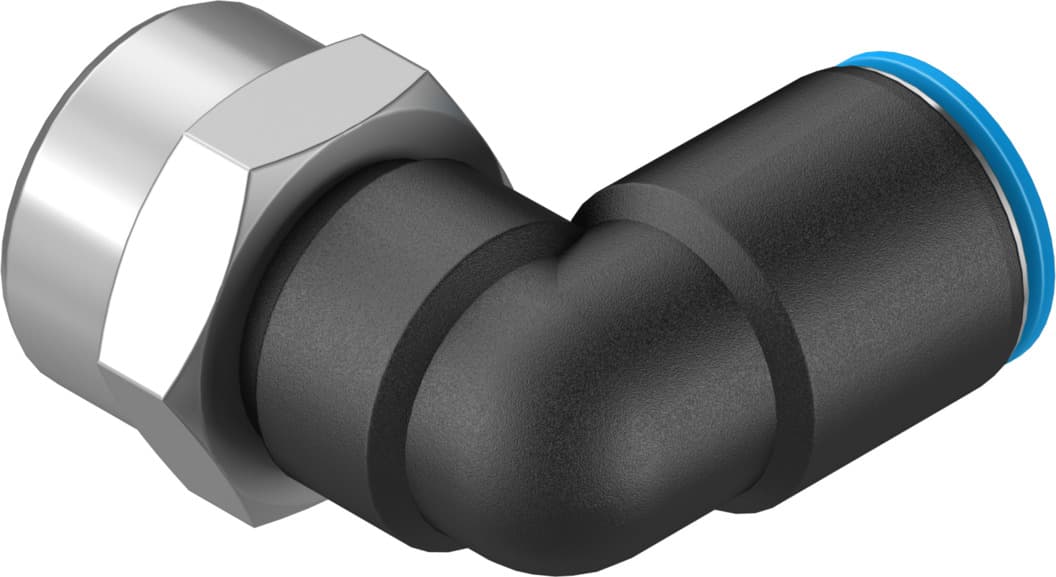

Product Model
qslf-3/8-10-b
Selling Points
- 1High-Quality Materials: Made from PBT (Polybutylene Terephthalate) and POM for durability and resistance.
- 2Versatile Design: Optional mounting position and 360° orientable for easy installation.
- 3Wide Operating Range: Operating pressure up to 14 bar and temperature range from -10°C to 80°C.
- 4Compliant with Standards: Meets ISO 8573-1:2010 for compressed air and suitable for water use.
- 5Low Corrosion Stress: Classified as CRC 1 for low corrosion stress, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8.3mm |
Mounting position | Any | Design | L-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 15.5Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 36g |
Type of mounting | External hexagon, AF 21 | Pneumatic connection 1 | Internal thread G3/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153280 |
Specifications may be subject to change without notice
