Product Model
qsl-g1/2-12-20
Selling Points

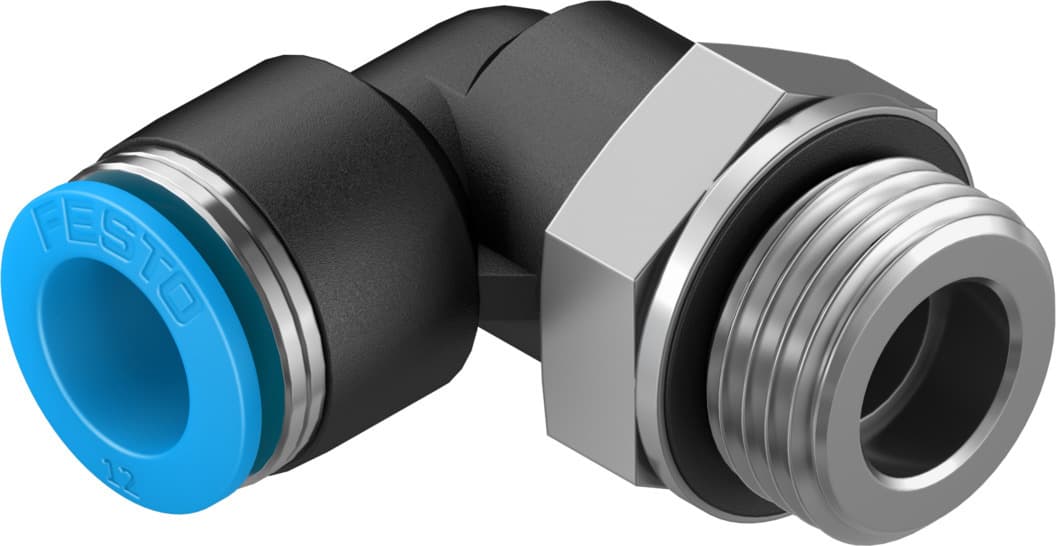

- 1The Festo QSL-G1/2-12-20 push-in L-fitting is designed for efficient pneumatic connections, ensuring reliable operation in various industrial settings.
- 2This L-shaped fitting features a male thread G1/2 and is compatible with tubing outer diameters of 12 mm, making it versatile for different pneumatic systems.
- 3Made from nickel-plated brass, the QSL-G1/2-12-20 offers high corrosion resistance and durability, ensuring long-lasting performance.
- 4The push-in principle allows for easy installation and removal, reducing the need for tools and increasing efficiency in your workflow.
- 5Suitable for operating pressures up to 0.6 MPa (6 bar) and temperatures between -10°C and 80°C, this fitting is ideal for a wide range of applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 10.3mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 20 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 26Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 67g | Type of mounting | External hexagon, AF 25 |
Pneumatic connection 1 | External thread G1/2 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132058 |
Specifications may be subject to change without notice
