Product Model

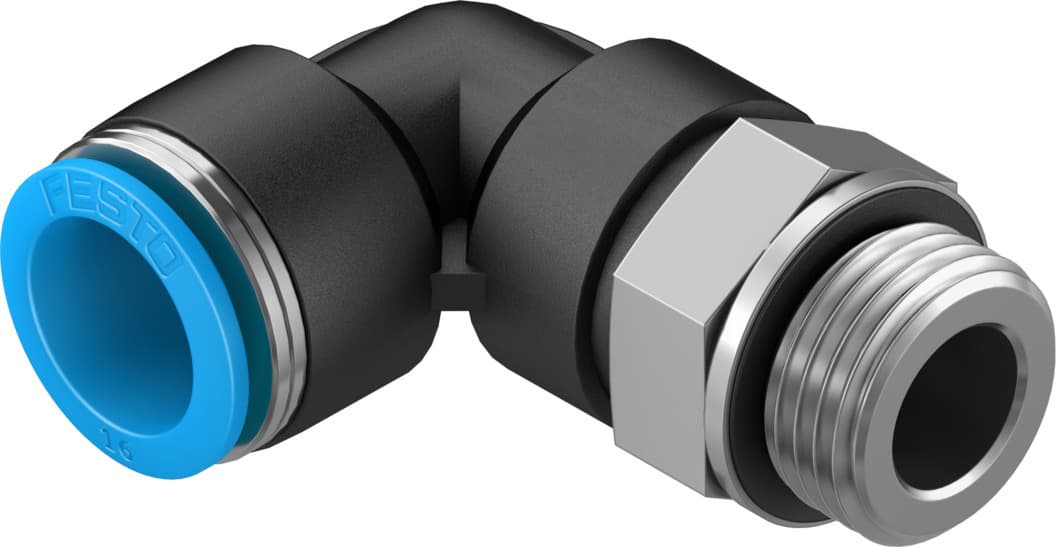

qsl-g1/2-16
Selling Points
- 1The Festo QSL-G1/2-16 push-in L-fitting ensures secure and leak-free connections for your pneumatic systems, with a nominal size of 13 mm and operating pressure range of -0.95 to 6 bar.
- 2This fitting features an external hexagon mounting with a 25 mm A/F, allowing for flexible installation in various orientations and positions, making it ideal for diverse applications.
- 3Constructed from nickel-plated brass and PBT housing, the QSL-G1/2-16 offers excellent corrosion resistance and durability, ensuring long-lasting performance in demanding environments.
- 4Equipped with a sealing ring, this push-in fitting ensures a tight seal, preventing leaks and maintaining system integrity. The sealing ring is also compatible with water when used with the OL sealing ring type as an additional accessory.
- 5The QSL-G1/2-16 supports temperature-dependent operating pressures, ranging from -0.095 to 1.4 MPa (-13.775 to 203 psi), making it suitable for a wide range of operating conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 13mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 26Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 75g |
Type of mounting | External hexagon, AF 25 | Pneumatic connection 1 | External thread G1/2 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 16 mm | Releasing ring color | Blue |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 186126 |
