Product Model
qsl-g1/4-12
Selling Points

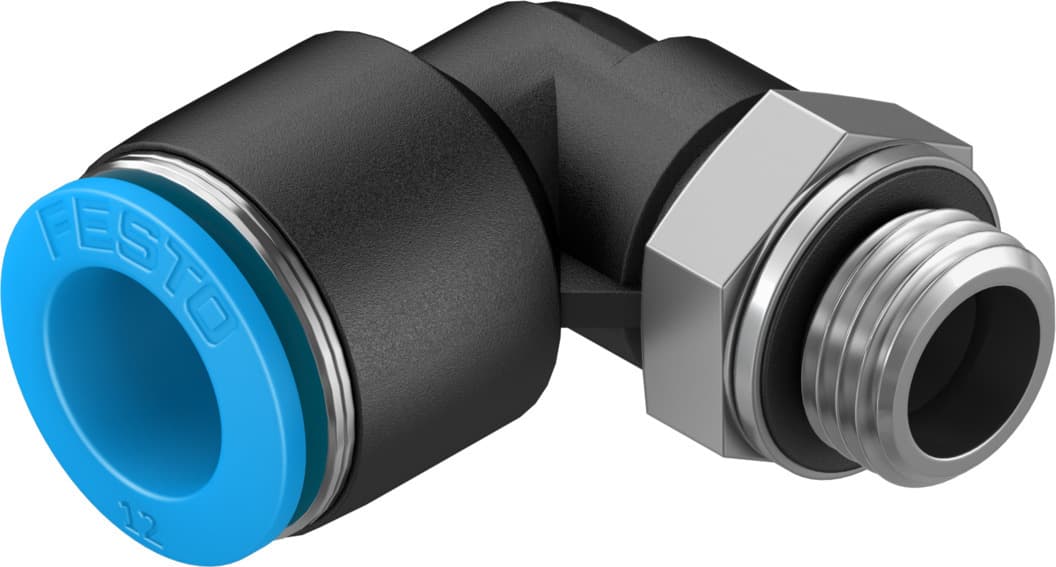

- 1The Festo QSL-G1/4-12 push-in L-fitting features an effortless, quick, and simple push-in installation, making it ideal for fast and efficient pneumatic connections.
- 2This fitting operates within a wide temperature range of -10°C to +80°C, ensuring reliable performance in various environmental conditions.
- 3Constructed from durable thermoplastic (PBT) and nickel-plated brass, the QSL-G1/4-12 offers strong corrosion resistance and a long-lasting design.
- 4With a G 1/4 male thread and a push-in connection for 12 mm tubing, this fitting provides versatile connection options suitable for various pneumatic applications.
- 5Equipped with a sealing ring, the QSL-G1/4-12 ensures reliable sealing and prevents leaks, maintaining the integrity of your pneumatic system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 9Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 29g |
Type of mounting | External hexagon, AF 17 | Pneumatic connection 1 | External thread G1/4 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm | Releasing ring color | Blue |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 186351 |
Specifications may be subject to change without notice
