Product Model
qsl-g1/4-8-50
Selling Points

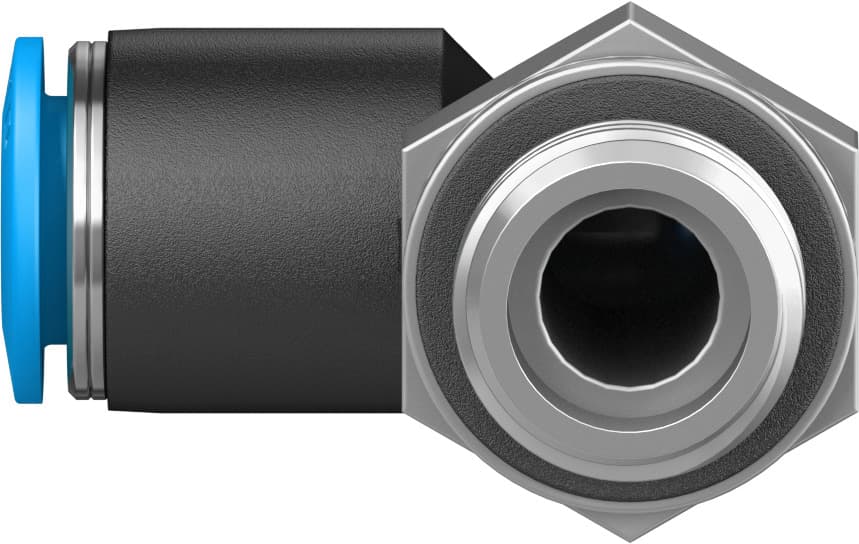

- 1The Festo QSL-G1/4-8-50 push-in L-fitting offers a standard size of 6.7mm nominal diameter, ensuring precise and reliable pneumatic connections.
- 2This product features a sealing ring type of seal on the screwed plug, providing a secure and leak-free operation in various environments.
- 3With an optional mounting position, the QSL-G1/4-8-50 allows for flexible installation, making it suitable for a wide range of applications.
- 4The push-pull principle design of the QSL-G1/4-8-50 ensures easy and efficient connection and disconnection, reducing the risk of damage.
- 5The product operates within a temperature range of -10°C to 80°C and supports both compressed air and water, making it versatile for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.7mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 50 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 23g | Type of mounting | External hexagon, AF 17 |
Pneumatic connection 1 | External thread G1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132052 |
Specifications may be subject to change without notice
