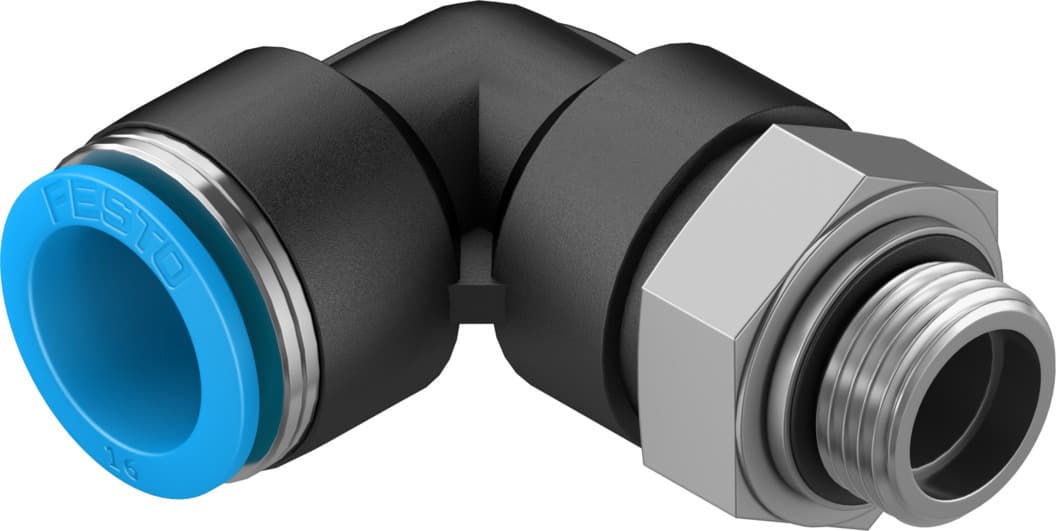

Festo QSL-G3/8-16 Push-in L-Fitting for Pneumatic Applications

Selling Points

1The Festo QSL-G3/8-16 push-in L-fitting offers quick and simple installation, reducing setup time in pneumatic applications.
2This fitting can operate between -10°C to +80°C, making it suitable for various environmental conditions.
3The nickel-plated brass material ensures high resistance to corrosion, extending the lifespan of the fitting.
4The QSL-G3/8-16 can be rotated in any direction, providing flexibility in installation and alignment.
5Made from strong and durable thermoplastic (PBT), this fitting ensures reliable connections in pneumatic systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	11mm
Type of seal on screwed plug	Sealing ring	Mounting position	Any
Design	L-shape	Pack size	1
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)	Information on operating and pilot media	Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C 80°C	Nominal tightening torque	15.5Nm
Tolerance for nominal tightening torque	± 20%	Product weight	77g
Type of mounting	External hexagon, AF 20	Pneumatic connection 1	External thread G3/8
Pneumatic connection 2	for pneumatic tubing outside diameter 16 mm	Releasing ring color	Blue
Material of screwed plug	Brass, nickel-plated	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	186348

Specifications may be subject to change without notice
