Product Model
qsl-g3/8-8-50
Selling Points

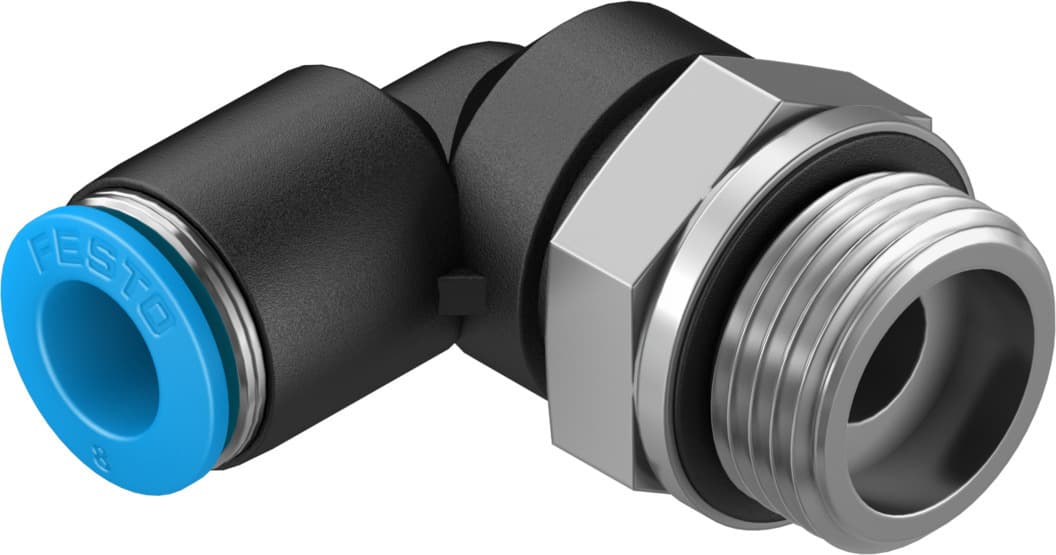

- 1The Festo QSL-G3/8-8-50 push-in L-fitting is designed for high-pressure pneumatic applications, with a temperature range of -10°C to 80°C and operating pressures up to 0.6 MPa (87 psi) for water and 1.4 MPa (203 psi) for compressed air.
- 2This fitting features a male thread G3/8 and is compatible with tubing outside diameters of 8 mm, ensuring secure connections in various pneumatic systems.
- 3The QSL-G3/8-8-50 is constructed from nickel-plated brass for the screwed plug, PBT for the housing, and POM for the release ring, ensuring durability and resistance to corrosion.
- 4The product is designed with a push-pull principle and includes a sealing ring for reliable operation, making it suitable for both lubricated and non-lubricated applications.
- 5The Festo QSL-G3/8-8-50 is compliant with RoHS regulations and meets cleanroom class 4 standards according to ISO 14644-1, making it ideal for use in controlled environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.7mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 50 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 30g | Type of mounting | External hexagon, AF 20 |
Pneumatic connection 1 | External thread G3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132055 |
Specifications may be subject to change without notice
