Product Model
qsll-1/2-12
Selling Points

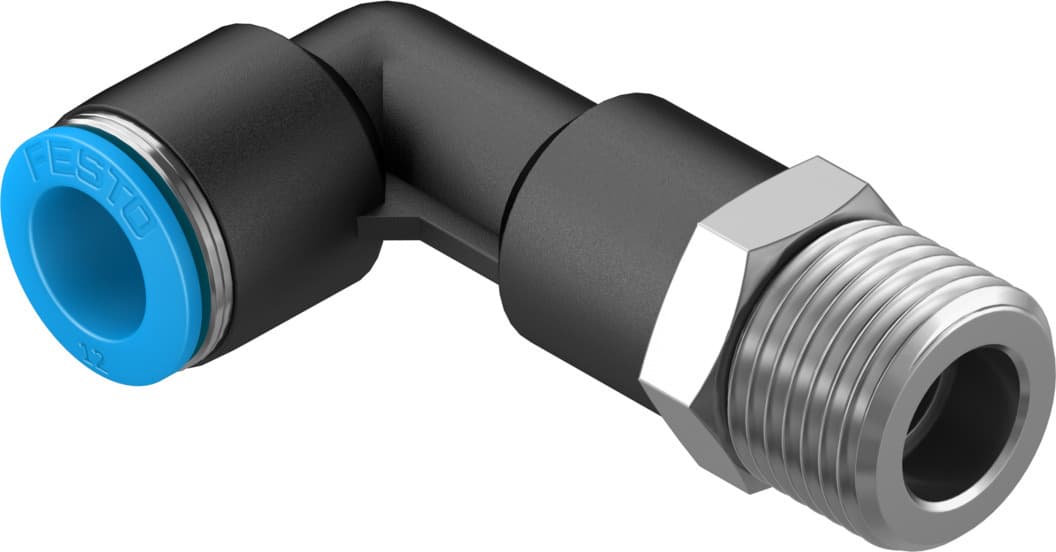

- 1The Festo QSLL-1/2-12 push-in L-fitting is designed for easy and secure connections, featuring a push-pull principle that ensures quick and reliable assembly.
- 2This fitting is compatible with compressed air and water, operating within a pressure range of -0.95 to 6 bar and a temperature range of -10 to 80°C.
- 3Made from high-quality materials, including PBT (Polybutylene Terephthalate) for the housing and NBR for the tubing seal, ensuring durability and resistance to corrosion.
- 4The QSLL-1/2-12 features a male thread R1/2 and a 12mm outer diameter for tubing, making it versatile for various pneumatic applications.
- 5With a nominal size of 10.3 mm and a blue-colored release ring, this fitting is both precise and visually identifiable, enhancing safety and efficiency in your pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 10.3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, long | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 26Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 68g | Type of mounting | External hexagon, AF 21 |
Pneumatic connection 1 | External thread R1/2 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153085 |
Specifications may be subject to change without notice
