Product Model
qsll-1/4-10
Selling Points

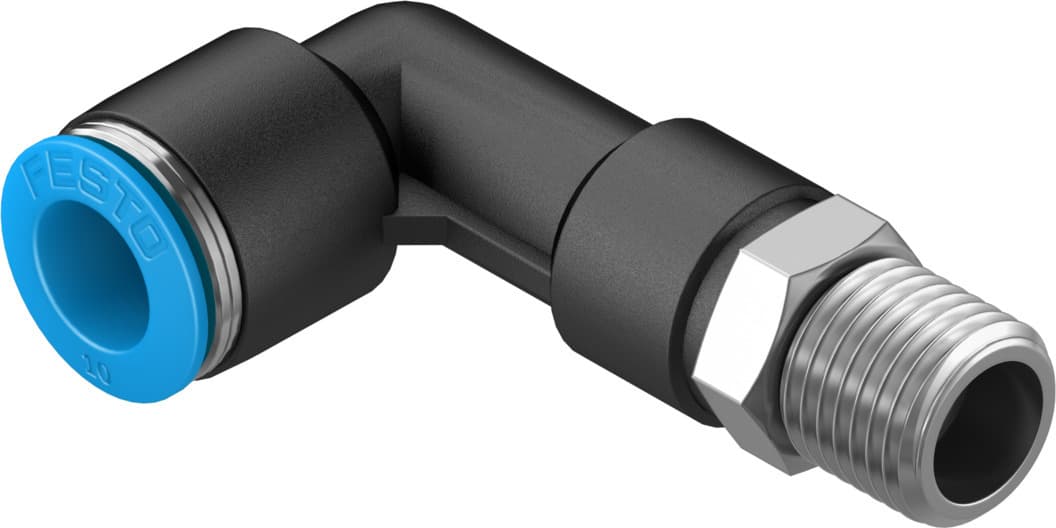

- 1The Festo QSL-1/4-10 push-in L-fitting is designed with a push-pull principle, making it easy to connect and disconnect without tools.
- 2This fitting operates within a wide temperature range of -10°C to 80°C, ensuring reliable performance in various environments.
- 3The QSL-1/4-10 features a nominal size of 8 mm and a tubing outside diameter of 10 mm, providing a secure and efficient connection.
- 4The fitting is made from high-quality materials, including nickel-plated brass for the screwed plug and PBT for the housing, ensuring corrosion resistance and durability.
- 5The QSL-1/4-10 is compliant with ISO 8573-1:2010 for compressed air and can also handle water as an operating medium, making it versatile for various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, long | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 26g | Type of mounting | External hexagon, AF 14 |
Pneumatic connection 1 | External thread R1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153082 |
Specifications may be subject to change without notice
