Product Model

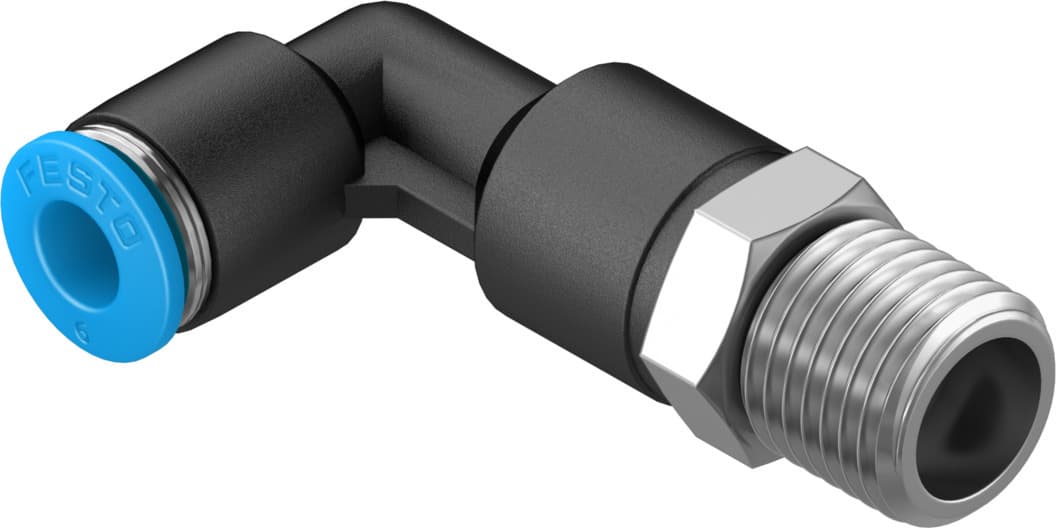

qsll-1/4-6
Selling Points
- 1High-Quality Material: The QSLL-1/4-6 is made from nickel-plated brass for the threaded portion and PBT for the body, ensuring durability and resistance to corrosion.
- 2Versatile Design: This push-in L-fitting features a L-shape design with a push-pull principle, allowing for easy and secure connections in various mounting positions.
- 3Wide Operating Range: The QSLL-1/4-6 operates within a temperature range of -10°C to 80°C and supports pressures up to 6 bar (87 psi), making it suitable for diverse applications.
- 4Easy Installation: With a nominal torque of 9 Nm and a tolerance of ±20%, the fitting is designed for straightforward installation and secure sealing.
- 5Compliant with Standards: The QSLL-1/4-6 meets ISO 8573-1:2010 for compressed air and is compliant with RoHS regulations, ensuring it meets industry standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, long | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 20g | Type of mounting | External hexagon, AF 14 |
Pneumatic connection 1 | External thread R1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153078 |
Specifications may be subject to change without notice
