Product Model
qsll-1/4-8
Selling Points

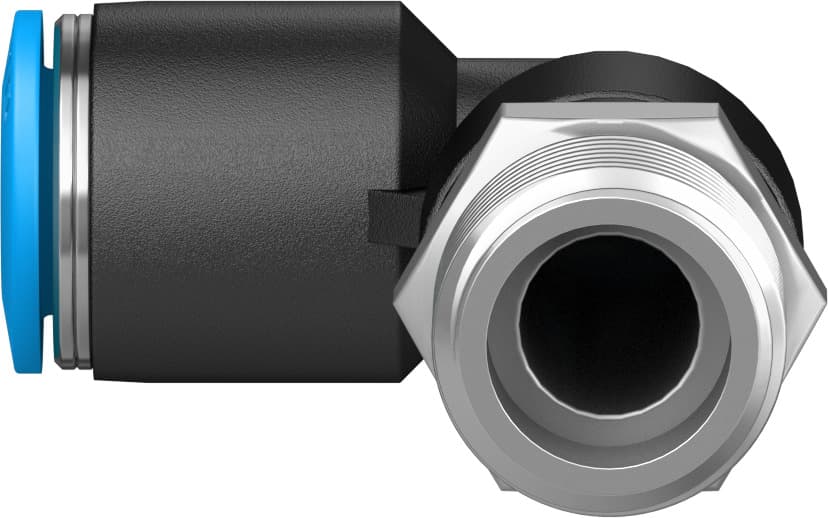

- 1The Festo QSLL-1/4-8 push-in L-fitting is designed with a push-pull principle, ensuring easy and secure connections in any mounting position.
- 2This fitting features a nominal width of 6.7 mm and is available in a pack size of 10 units, making it ideal for bulk applications.
- 3The QSLL-1/4-8 is constructed with high-quality materials, including PBT housing, POM sleeve, and NBR tube seal, ensuring durability and resistance to corrosion.
- 4The fitting supports operating pressures from -0.95 to 6 bar and can handle temperatures ranging from -10°C to 80°C, making it suitable for various industrial environments.
- 5The Festo QSLL-1/4-8 is RoHS compliant and compatible with compressed air according to ISO 8573-1:2010, as well as water under specific conditions, making it versatile for different applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.7mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, long | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 22g | Type of mounting | External hexagon, AF 14 |
Pneumatic connection 1 | External thread R1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153080 |
Specifications may be subject to change without notice
