Product Model
qsll-1/8-6
Selling Points

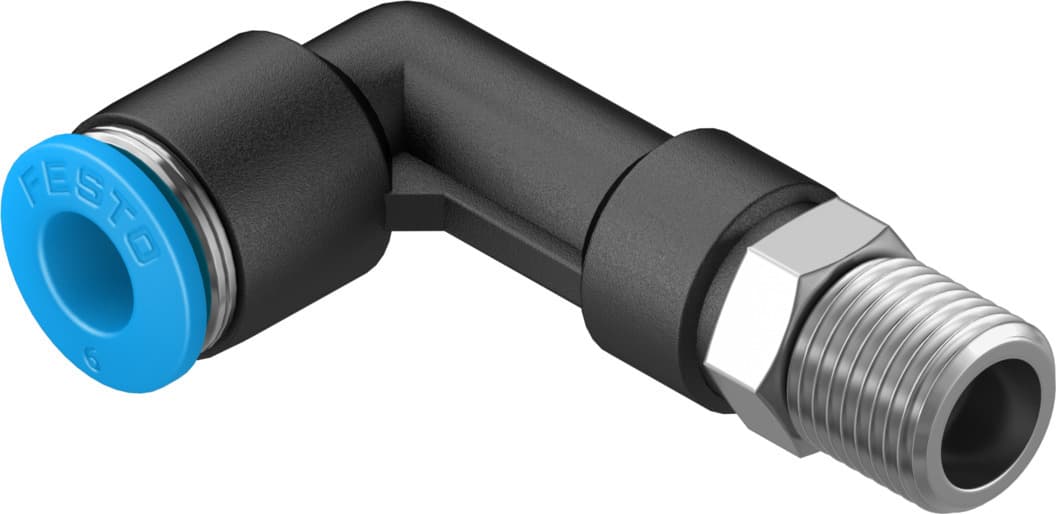

- 1The Festo QSLL-1/8-6 push-in L-fitting is designed with a nominal size of 4.3 mm, ensuring precise and reliable pneumatic connections.
- 2This fitting features a push-pull principle, making it easy to install and remove without the need for tools, enhancing efficiency in your pneumatic system.
- 3The QSLL-1/8-6 is compatible with compressed air to ISO 8573-1:2010 and can also handle water as an operating medium, making it versatile for various applications.
- 4With a corrosion resistance class of CRC 1 and conformity to LABS (PWIS) and VDMA24364-B1/B2-L, this fitting ensures low corrosion stress and high reliability in cleanroom environments.
- 5The QSLL-1/8-6 is available in packs of 10 and features a nickel-plated brass screwed plug, ensuring durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, long | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 13g | Type of mounting | External hexagon, AF 10 |
Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153077 |
Specifications may be subject to change without notice
