Product Model
qsll-3/8-10
Selling Points

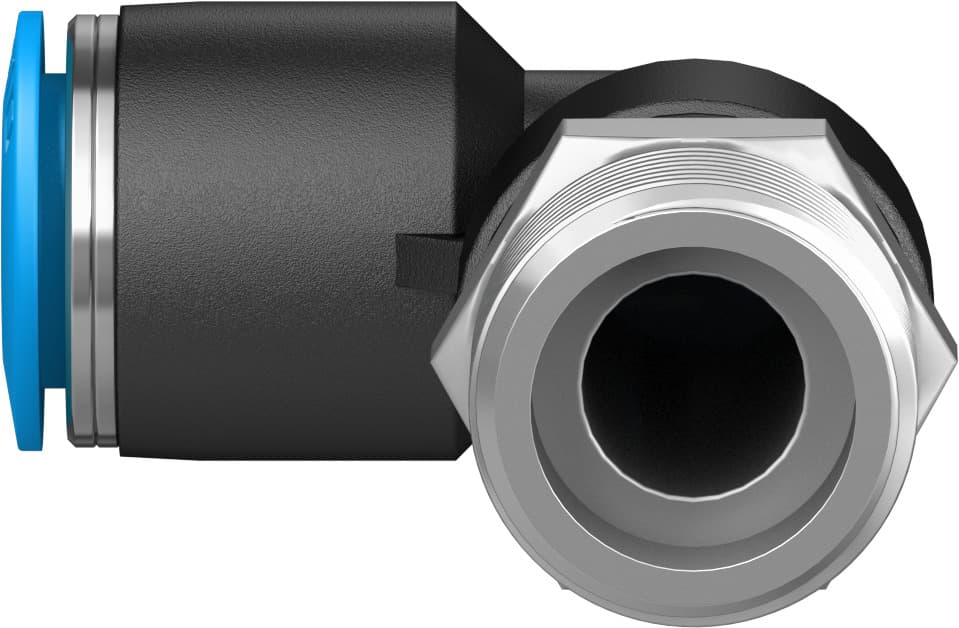

- 1The Festo QSL-3/8-10 push-in L-fitting is designed for easy installation and 360° orientation, making it versatile for various pneumatic applications.
- 2This fitting features a male thread with an external hexagon and a coating seal on the screw-in stud, ensuring a secure and reliable connection.
- 3The QSL-3/8-10 operates within a temperature range of -10 to 80°C and supports pressures up to 6 bar, making it suitable for a wide range of industrial environments.
- 4The material housing is made of PBT, conforming to RoHS standards, and the product is corrosion-resistant with a classification of CRC 1 – Low corrosion stress.
- 5The Festo QSL-3/8-10 is compatible with compressed air in accordance with ISO8573-1:2010 and can also be used with water as per manufacturer’s declaration, ensuring broad applicability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8.3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, long | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 38g | Type of mounting | External hexagon, AF 17 |
Pneumatic connection 1 | External thread R3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153083 |
