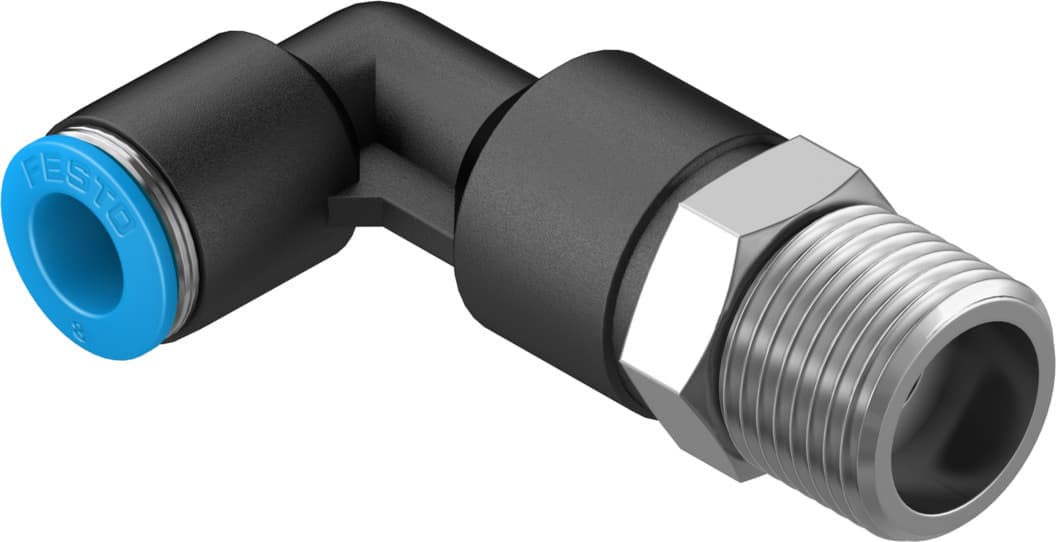

Product Model
qsll-3/8-8
Selling Points
- 1The Festo QSL-3/8-8 features an L-shape design with a push-pull principle, ensuring secure and reliable connections in various industrial applications.
- 2This fitting operates within a broad temperature range of -10°C to 80°C and supports pressures up to 0.6 MPa (87 psi) with water, making it versatile for different environments.
- 3With a corrosion resistance class of CRC 1 and compliance with LABS (PWIS) and VDMA24364-B1/B2-L standards, the QSL-3/8-8 is designed to withstand low corrosion stress.
- 4The push-in design allows for quick and easy installation, reducing setup time and increasing operational efficiency in pneumatic systems.
- 5Constructed from high-quality materials such as nickel-plated brass for the screwed plug, PBT for the housing, and NBR for the tubing seal, ensuring durability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.7mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, long | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 35g | Type of mounting | External hexagon, AF 17 |
Pneumatic connection 1 | External thread R3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153081 |
