Product Model
qsll-g1/4-12
Selling Points

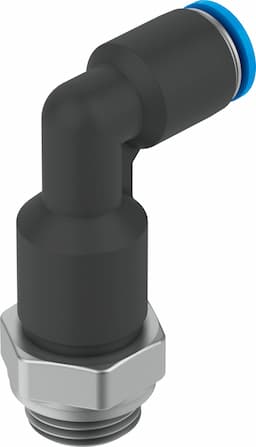

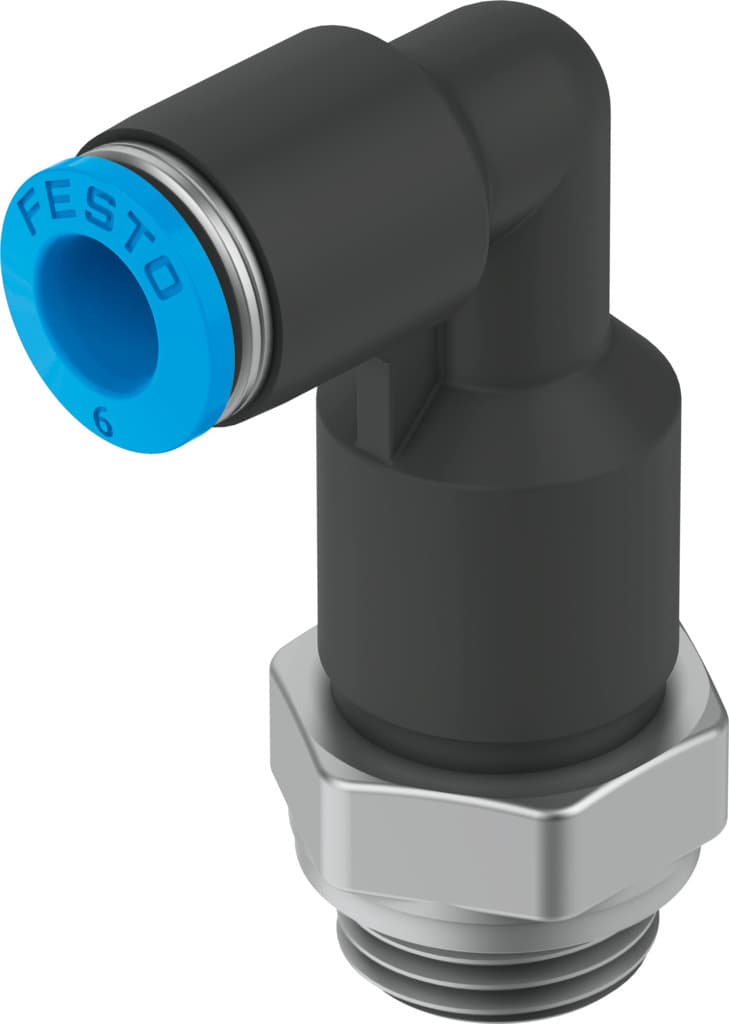

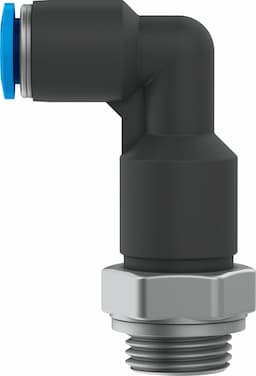

- 1The QSLL-G1/4-12 push-in L-fitting is designed to be 360° orientable, ensuring flexibility in installation and use.
- 2Equipped with a male thread and external hexagon, this fitting provides a secure and easy-to-use connection.
- 3The nominal size of the fitting is 8 mm, making it compatible with a wide range of pneumatic systems.
- 4The type of seal on the screw-in stud is a sealing ring, ensuring a tight seal and reliable operation.
- 5The QSLL-G1/4-12 supports operating pressures from -0.95 to 6 bar, suitable for various pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape, long | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 35g | Type of mounting | External hexagon, AF 17 |
Pneumatic connection 1 | External thread G1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132596 |
Specifications may be subject to change without notice
