Product Model
qsl-v0-1/4-8
Selling Points

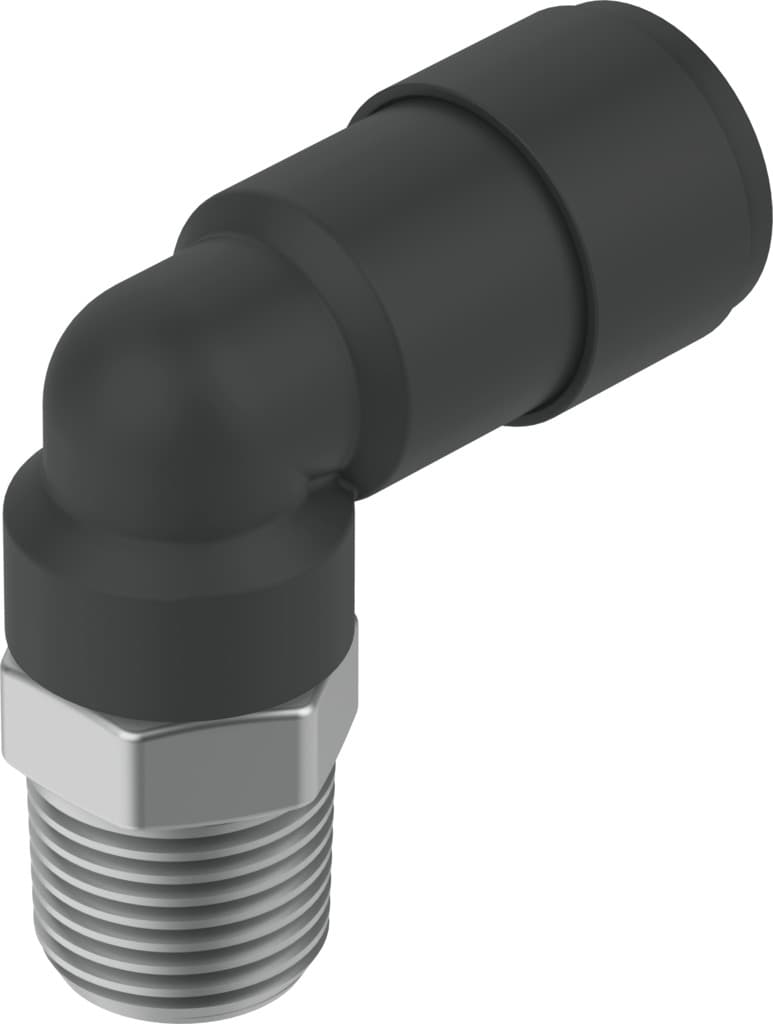

- 1The Festo QSL-V0-1/4-8 push-in l-fitting features a 360° orientable design, ensuring easy installation and flexibility in pneumatic systems.
- 2This fitting is made from UL94 V-0 fire-resistant materials, including the housing and releasing ring, providing high safety standards.
- 3With a nominal size of 6.7 mm, the QSL-V0-1/4-8 is designed to fit standard pneumatic tubing, making it versatile for various applications.
- 4The push-pull principle and external hexagon design facilitate easy tightening and loosening, ensuring reliable connections in pneumatic systems.
- 5The QSL-V0-1/4-8 is compatible with compressed air as per ISO 8573-1:2010 and can operate with oil lubrication, enhancing its durability and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.7mm |
Material fire test | UL94 V-0 (housing) UL94 V-0 (releasing ring) | Type of seal on screwed plug | Coating |
Design | L-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 21g | Type of mounting | External hexagon, AF 14 |
Pneumatic connection 1 | External thread R1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Black | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | PBT | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel Brass | Manufacturer ID | 160514 |
