Product Model
qsl-v0-g1/2-12
Selling Points

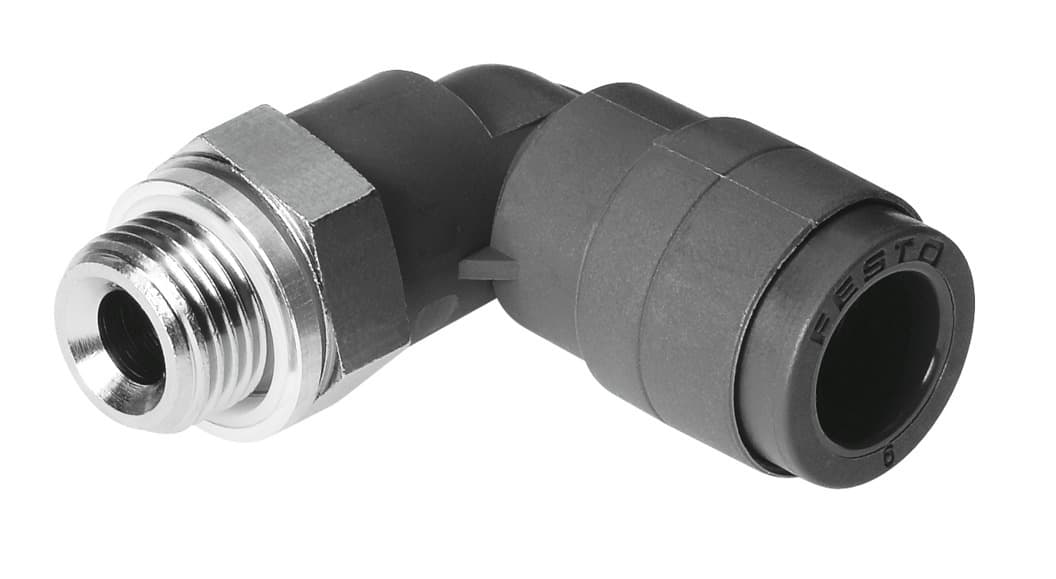

- 1The QSL-V0-G1/2-12 is made from PBT-reinforced housing and nickel-plated brass screw-in stud, ensuring durability and resistance to corrosion.
- 2This push-in L-fitting features a 360° orientable design with an external hexagon, making it easy to install and rotate.
- 3The product meets RoHS compliance and has a fire test rating of UL94 V-0 for both the housing and releasing ring, ensuring safety in various environments.
- 4The QSL-V0-G1/2-12 operates effectively within a temperature range of 0°C to 60°C and supports pressures up to 10 bar, making it suitable for various pneumatic applications.
- 5Equipped with a sealing ring, this fitting ensures a tight seal, preventing leaks and maintaining system integrity during operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 10.3mm |
Material fire test | UL94 V-0 (housing) UL94 V-0 (releasing ring) | Type of seal on screwed plug | Sealing ring |
Design | L-shape | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
Nominal tightening torque | 26Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 69g | Type of mounting | External hexagon, AF 24 |
Pneumatic connection 1 | External thread G1/2 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Black | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Material of threaded seal | Aluminum PBT | Releasing ring material | PBT |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel Brass |
Manufacturer ID | 186335 |
Specifications may be subject to change without notice
