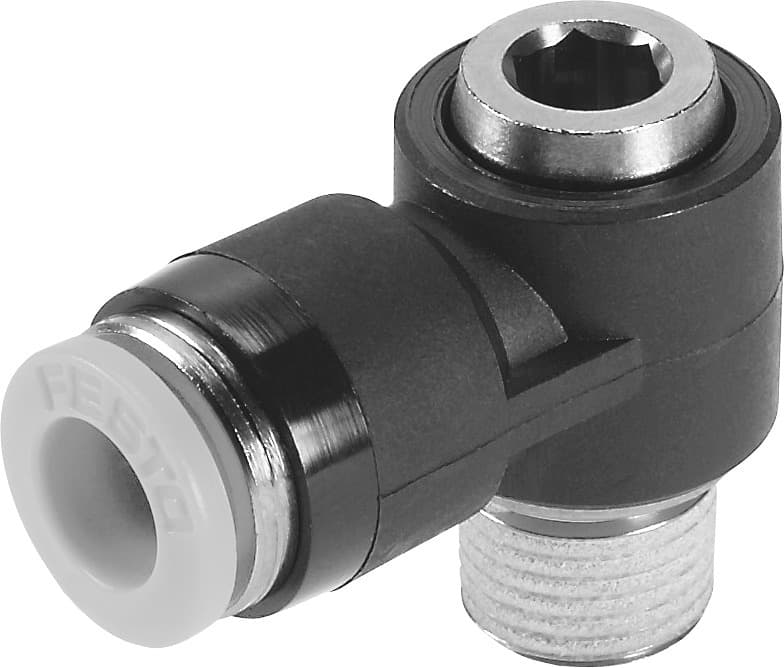

Festo QSLV-1/8-1/4-I-U Elbow Fitting for Pneumatic Systems

Selling Points

1The Festo QSLV-1/8-1/4-I-U elbow fitting is designed with an internal hex for easy mounting and dismounting, ensuring quick connections in pneumatic systems.
2This elbow fitting supports operating pressures of -0.95 to 10 bar and temperatures from -10°C to 60°C, making it versatile for various applications.
3Constructed from Polybutylene Terephthalate (PBT), the QSLV-1/8-1/4-I-U offers high corrosion resistance and durability in harsh environments.
4The fitting features a nickel-plated brass base and threaded portion, ensuring a secure and reliable connection in pneumatic tubing.
5With a compact design and push-to-connect functionality, the QSLV-1/8-1/4-I-U is perfect for reducing installation time and improving system efficiency.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	3mm
Type of seal on screwed plug	Coating	Mounting position	Any
Design	L-shape	Pack size	1
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 145psi
Maritime classification	See certificate	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 60°C
Max. tightening torque	8Nm	Product weight	15g
Type of mounting	Hex socket 3/16	Pneumatic connection 1	external thread 1/8 NPT
Pneumatic connection 2	for pneumatic tubing outer diameter 1/4"	Ambient temperature Fahrenheit	14°F 140°F
Releasing ring color	Gray	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	190755
