Product Model
qslv-1/8-4-100
Selling Points
- 1High-Quality Material: The QSLV-1/8-4-100 is made from PBT (Polybutylene Terephthalate) for the housing and nickel-plated brass for the threaded portion, ensuring durability and resistance to corrosion.

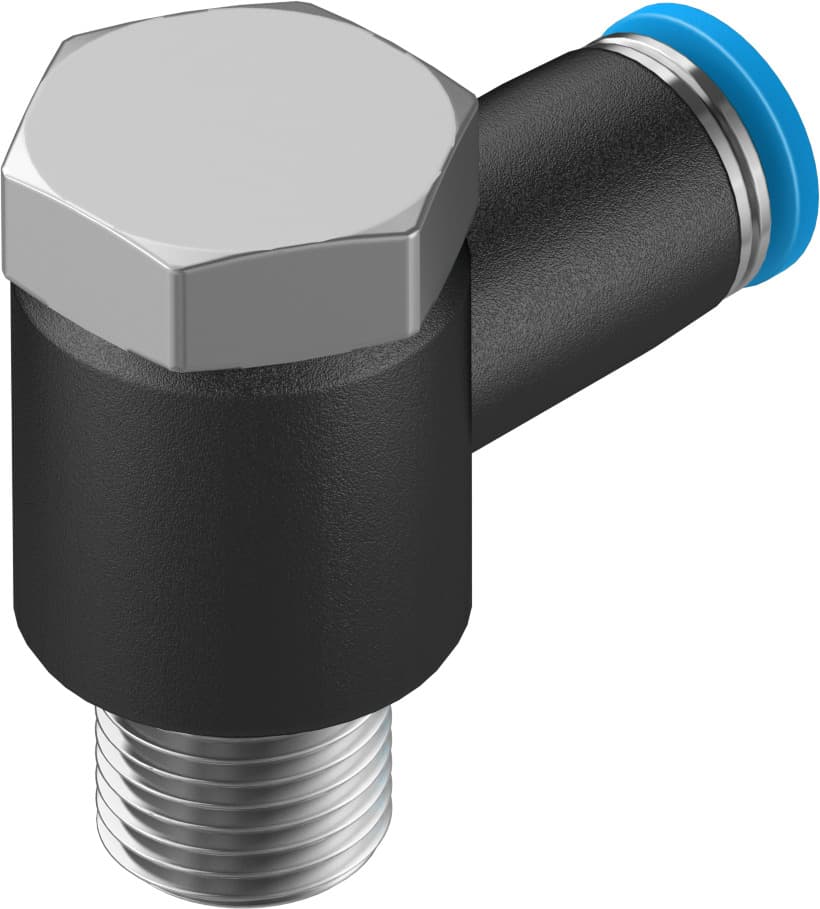

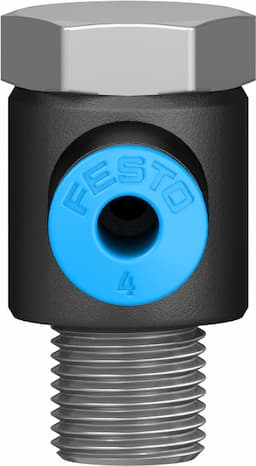

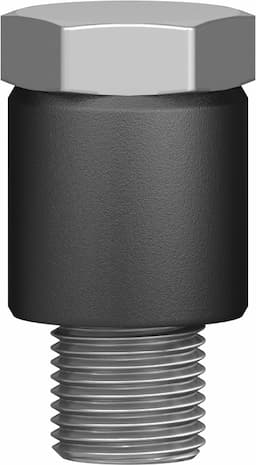

- 2Versatile Design: This L-shaped elbow fitting features an external hex design, allowing for easy mounting and rotation, making it versatile for various pneumatic applications.
- 3Wide Operating Range: The fitting supports operating pressures from -0.095 MPa to 0.6 MPa (or -13.775 psi to 87 psi) and temperatures between -10°C and 80°C, making it suitable for a wide range of environments.
- 4Easy Installation: With a push-pull principle and PTFE pre-coated thread, installation is quick and secure, ensuring a reliable connection in compressed air systems.
- 5Compliance and Certifications: The QSLV-1/8-4-100 meets ISO 8573-1:2010 standards for compressed air quality and is compliant with RoHS regulations, ensuring it meets industry standards for safety and sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2.4mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape | Pack size | 100 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 21g | Type of mounting | Hollow bolt with external hex |
Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130749 |
Specifications may be subject to change without notice
