Product Model

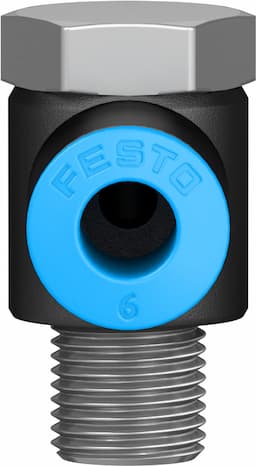

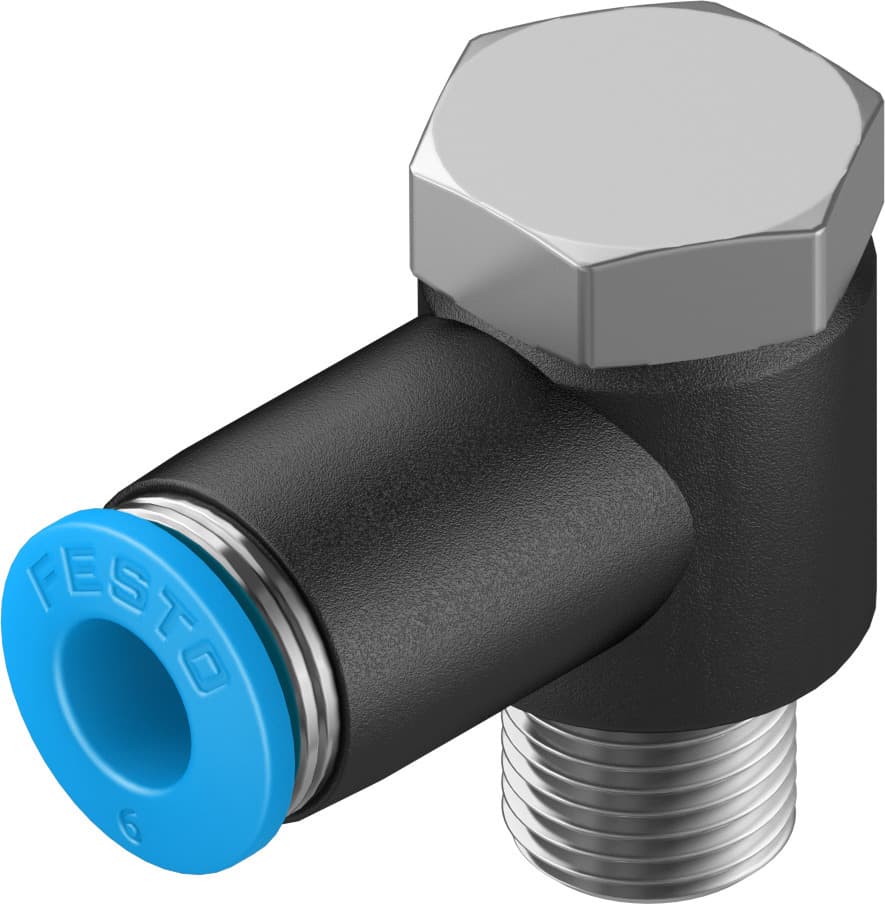

qslv-1/8-6-100
Selling Points
- 1The Festo QSLV-1/8-6-100 is built with high-quality materials, including PBT housing, POM sleeve, and NBR tube seal, ensuring durability and reliability in your pneumatic system.
- 2This push-in L-fitting operates effectively within a wide temperature range of -10°C to 80°C and supports pressures from -0.95 to 6 bar, making it suitable for various industrial applications.
- 3Featuring a push-pull principle and a 360° orientable design, the QSLV-1/8-6-100 is easy to install and can be mounted in any position, providing flexibility in your setup.
- 4With a corrosion resistance class of CRC 1, this fitting is designed to withstand low corrosion stress, ensuring it remains functional even in harsh environments.
- 5The QSLV-1/8-6-100 is compliant with RoHS and meets the standards for compressed air as per ISO 8573-1:2010, making it a reliable choice for your pneumatic system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3.7mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape | Pack size | 100 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 22g | Type of mounting | Hollow bolt with external hex |
Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130750 |
Specifications may be subject to change without notice
