Product Model

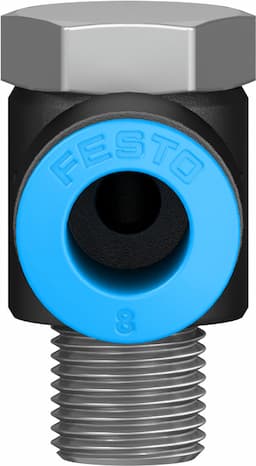

qslv-1/8-8-50
Selling Points
- 1The Festo QSLV-1/8-8-50 push-in L-fitting ensures secure and reliable pneumatic connections, suitable for compressed air and water applications.
- 2This fitting operates within a broad pressure range, from -0.095 MPa to 0.6 MPa, making it versatile for various pneumatic systems.
- 3With a corrosion resistance class of CRC 1, the QSLV-1/8-8-50 is designed to withstand low corrosion stress, ensuring durability in demanding environments.
- 4The fitting offers optional mounting positions, allowing for flexible installation in different setups and applications.
- 5The QSLV-1/8-8-50 meets ISO 8573-1:2010 standards for compressed air and is also compliant with cleanroom class 4 according to ISO 14644-1, making it suitable for cleanroom environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.4mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape | Pack size | 50 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 23g | Type of mounting | Hollow bolt with external hex |
Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130751 |
Specifications may be subject to change without notice
