Product Model
qslv2-g1/8-6
Selling Points

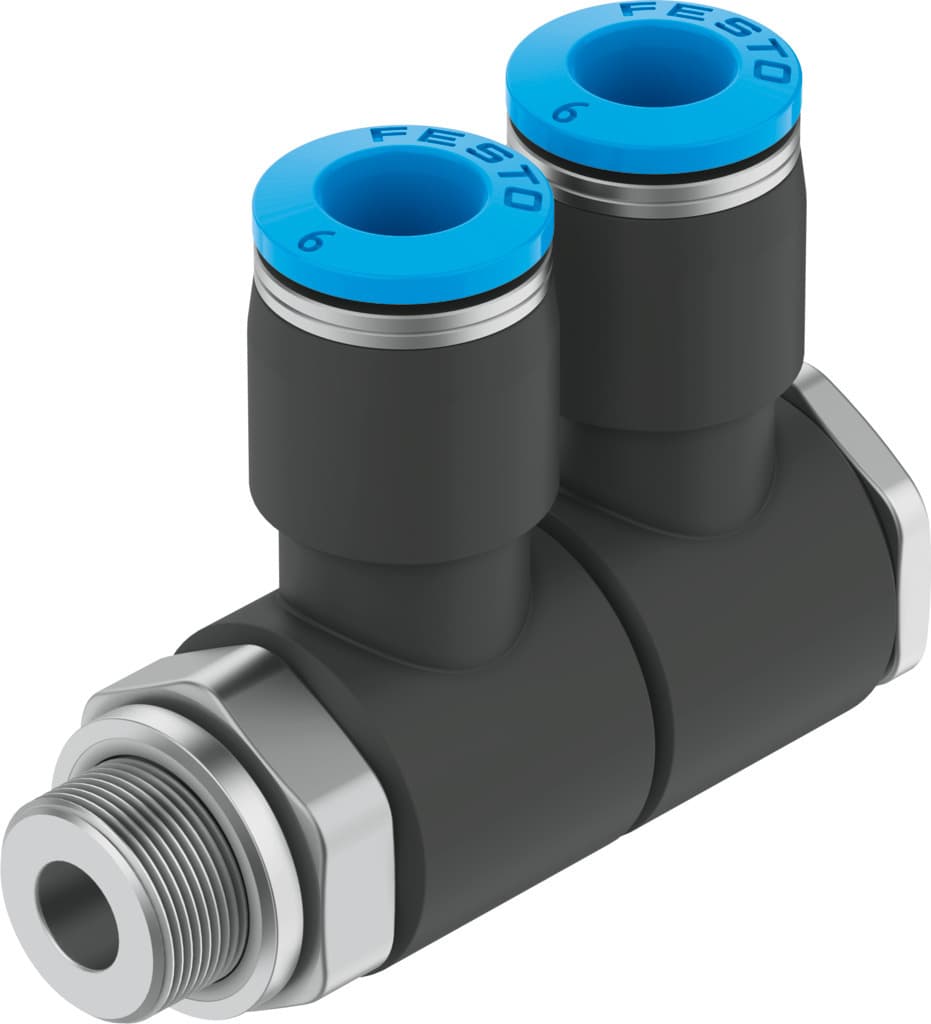

- 1The Festo QSLV2-G1/8-6 double elbow fitting ensures a secure and reliable pneumatic connection, ideal for various industrial applications.
- 2With a nominal size of 3.2 mm and a push-pull principle, this fitting is versatile and can be mounted in any position, making it suitable for diverse setups.
- 3The QSLV2-G1/8-6 supports operating pressures from -0.95 to 6 bar, and up to 14 bar under temperature-dependent conditions, ensuring it can handle a wide range of applications.
- 4Made from RoHS-compliant materials like PBT for the housing and POM for the release ring, this fitting is durable and resistant to corrosion, ensuring long-lasting performance.
- 5Featuring a sealing ring for screw-in studs, this double elbow fitting is easy to install and maintain, reducing downtime and increasing operational efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3.2mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Structural design | Push-pull principle | Pack size | 1 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 5.4Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 27g | No. of outlets | 2 |
No. of supply lines | 1 | Pneumatic connection 1 | External thread G1/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Hollow bolt material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 186224 |
Specifications may be subject to change without notice
