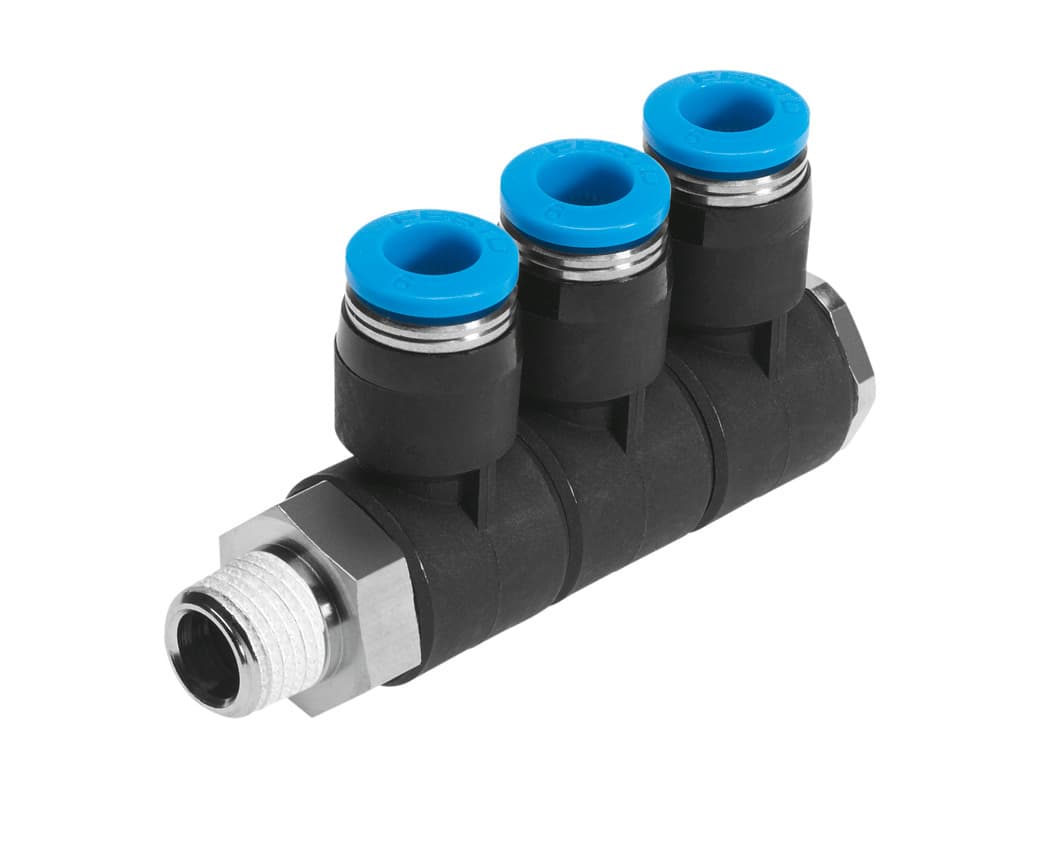

Product Model
qslv3-1/4-8
Selling Points
- 1The Festo QSLV3-1/4-8 multi-connector fitting offers a robust and flexible connection solution, enhancing system reliability and efficiency in various industrial applications.
- 2With a standard size and nominal width of 4.2 mm, this fitting is versatile and can be mounted in any position, making it ideal for diverse industrial settings.
- 3The QSLV3-1/4-8 features a push-pull principle design, ensuring easy assembly and disassembly, and it is compatible with compressed air and water according to ISO 8573-1:2010.
- 4This multi-connector fitting has a blue release ring for easy detachment of the tubing, and it is made from RoHS-compliant materials, including PBT for the housing and nickel-plated brass for the hollow bolt.
- 5The Festo QSLV3-1/4-8 supports operating pressures up to 6 bar and is suitable for temperatures ranging from -10°C to 80°C, making it a reliable choice for various industrial applications such as aerospace, mining, and more.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.2mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Structural design | Push-pull principle | Pack size | 1 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 59g | No. of outlets | 3 |
No. of supply lines | 1 | Pneumatic connection 1 | External thread R1/4 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Hollow bolt material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153225 |
Specifications may be subject to change without notice
