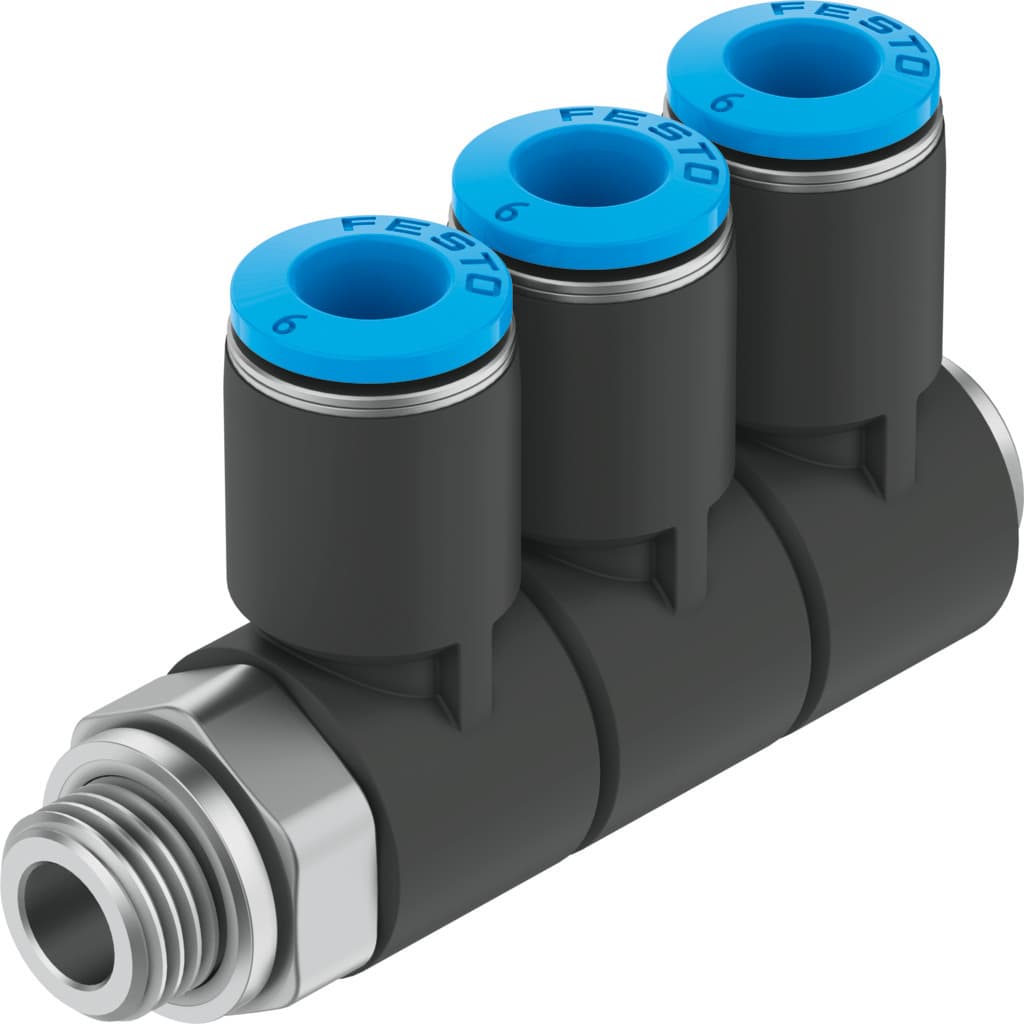

Product Model
qslv3-1/8-6
Selling Points
- 1The Festo QSLV3-1/8-6 multiple distributor features a push-pull principle design, ensuring easy and secure connection and disconnection of pneumatic tubing. Its PBT housing material provides excellent durability and resistance to corrosion.
- 2This fitting is designed to operate within a wide temperature range of -10°C to 80°C, making it suitable for various industrial applications. It also supports operating pressures up to 6 bar, ensuring reliable performance under different conditions.
- 3The QSLV3-1/8-6 comes with a blue release ring that allows for easy detachment of the tubing. The outside tubing diameter is marked on the release ring for convenient identification and use.
- 4The stainless steel retaining claw within the fitting securely holds the tubing without damaging its surface, effectively absorbing vibrations and pressure surges. This ensures a safe and stable connection.
- 5The Festo QSLV3-1/8-6 multiple distributor is RoHS compliant, meeting environmental standards for the use of hazardous substances. It is also suitable for use with compressed air to ISO 8573-1:2010, making it a reliable choice for industrial pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3.2mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Structural design | Push-pull principle | Pack size | 1 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 35g | No. of outlets | 3 |
No. of supply lines | 1 | Pneumatic connection 1 | External thread R1/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Hollow bolt material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153222 |
Specifications may be subject to change without notice
