Product Model

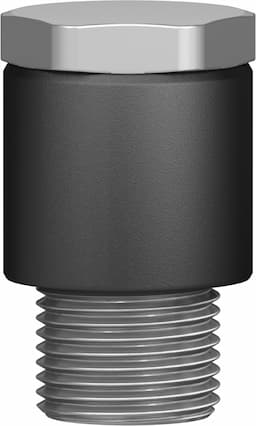

qslv-3/8-10
Selling Points

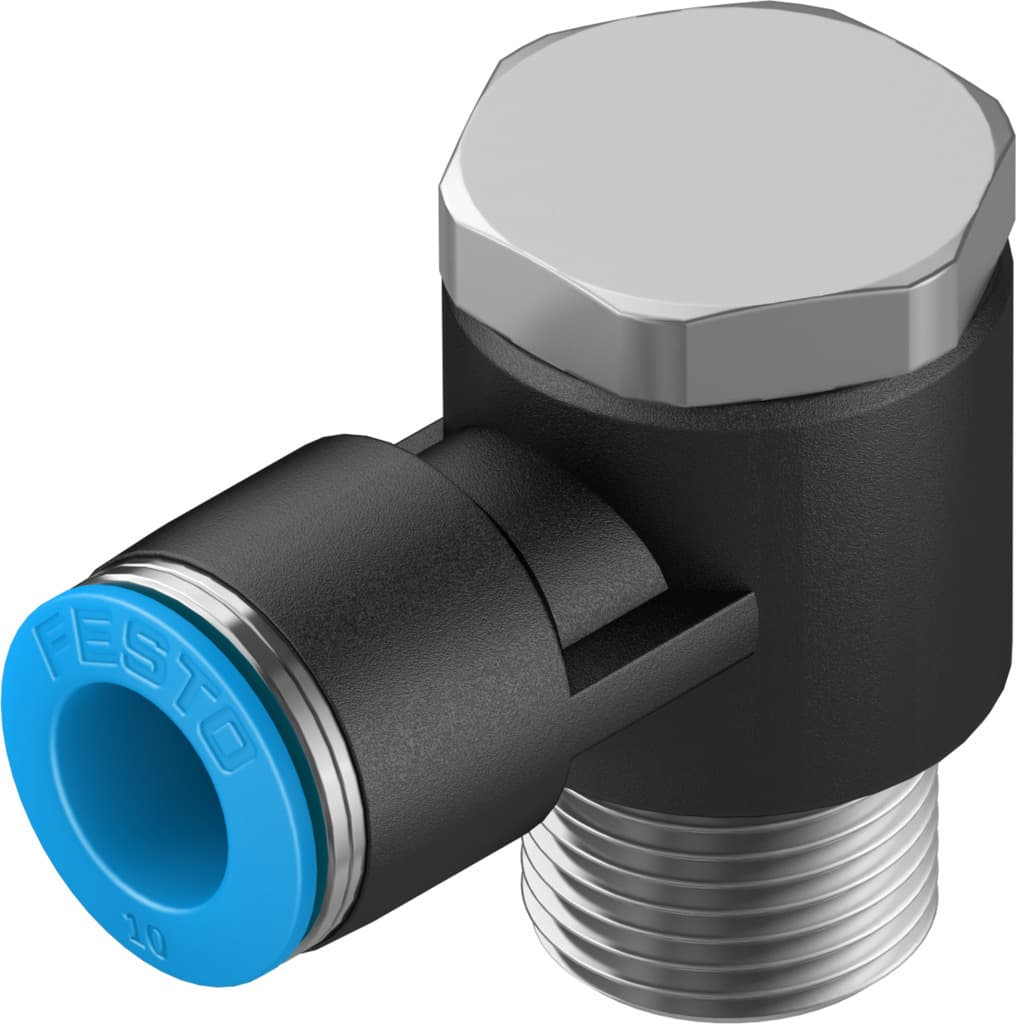

- 1The Festo QSLV-3/8-10 push-in L-fitting is designed for high-pressure pneumatic applications, ensuring reliable connections and efficient operation. It features a male thread with external hex and is orientable for easy installation.
- 2This push-in fitting is made from PBT housing material and has a corrosion resistance class of 1, making it suitable for various industrial environments. It operates within a temperature range of -10°C to 80°C.
- 3The QSLV-3/8-10 includes a nitrile rubber sealing ring for a perfect seal between the standard OD tubing and the fitting body. It supports operating pressures up to 6 bar and is compatible with compressed air and water.
- 4This product is part of the QSLV series, known for its push-pull principle construction setup. It is available in packs of 10 pieces and weighs approximately 49 grams per piece, making it convenient for storage and handling.
- 5The Festo QSLV-3/8-10 push-in L-fitting is RoHS compliant and suitable for maritime applications. It offers a wide range of pneumatic connections, ensuring flexibility in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 63g | Type of mounting | Hollow bolt with external hex |
Pneumatic connection 1 | External thread R3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153093 |
Specifications may be subject to change without notice
