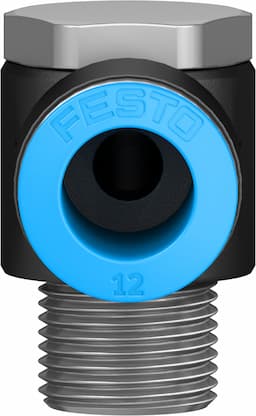

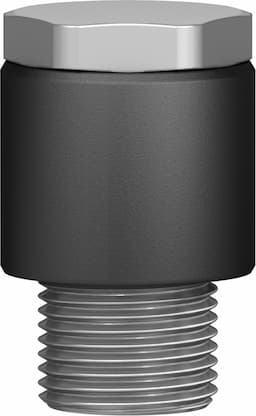

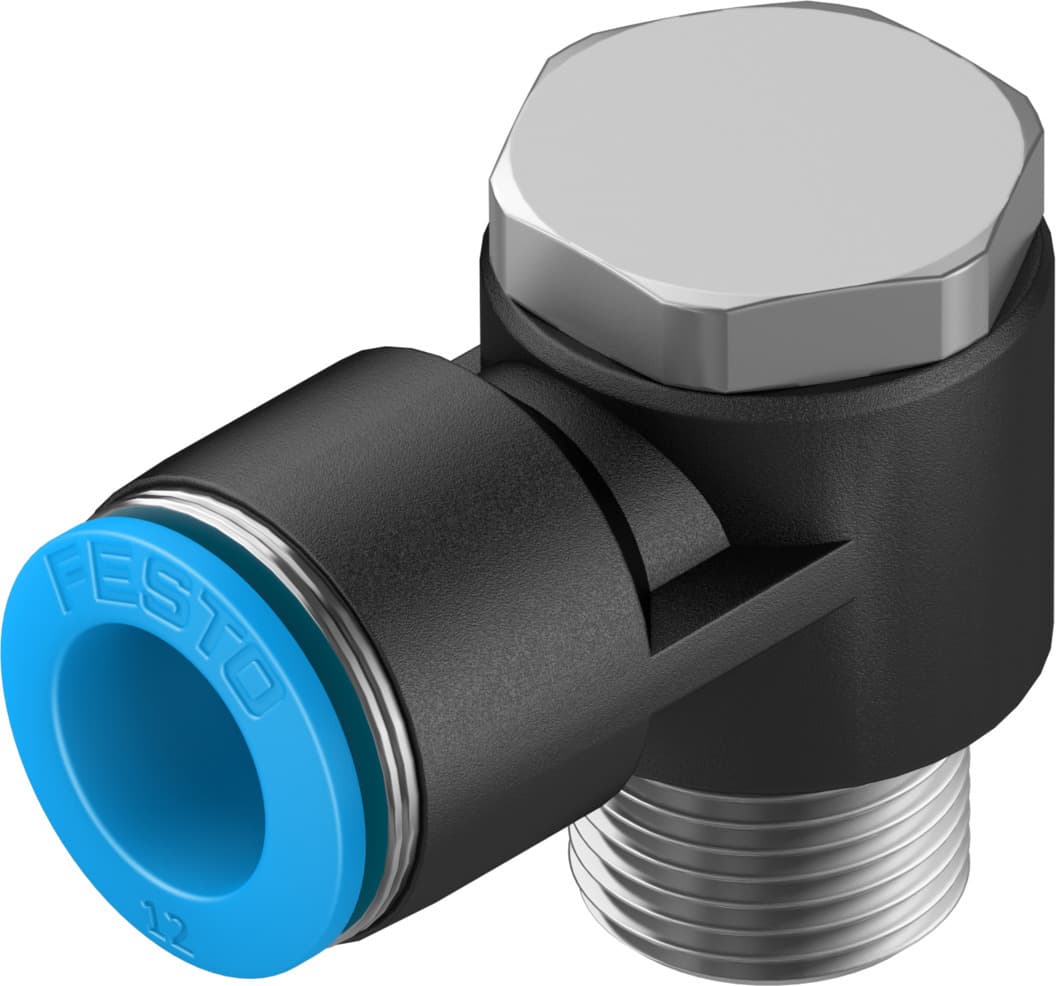

Product Model
qslv-3/8-12
Selling Points
- 1High-Quality Material: Constructed from PBT housing, nickel-plated brass hollow bolt, and POM release ring for durability.
- 2Wide Operating Range: Suitable for compressed air and water, with operating pressure up to 0.6 MPa and temperature range from -10°C to 80°C.
- 3Low Corrosion Stress: Classified as CRC 1 for low corrosion stress, ensuring long-lasting performance in various environments.
- 4Easy Installation: Push-in design with a nominal torque of 15.5 Nm, making it simple to install and secure.
- 5Cleanroom Compatible: Meets Class 4 cleanroom standards according to ISO 14644-1, ideal for applications requiring high cleanliness.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 9.3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 66g | Type of mounting | Hollow bolt with external hex |
Pneumatic connection 1 | External thread R3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153094 |
Specifications may be subject to change without notice
