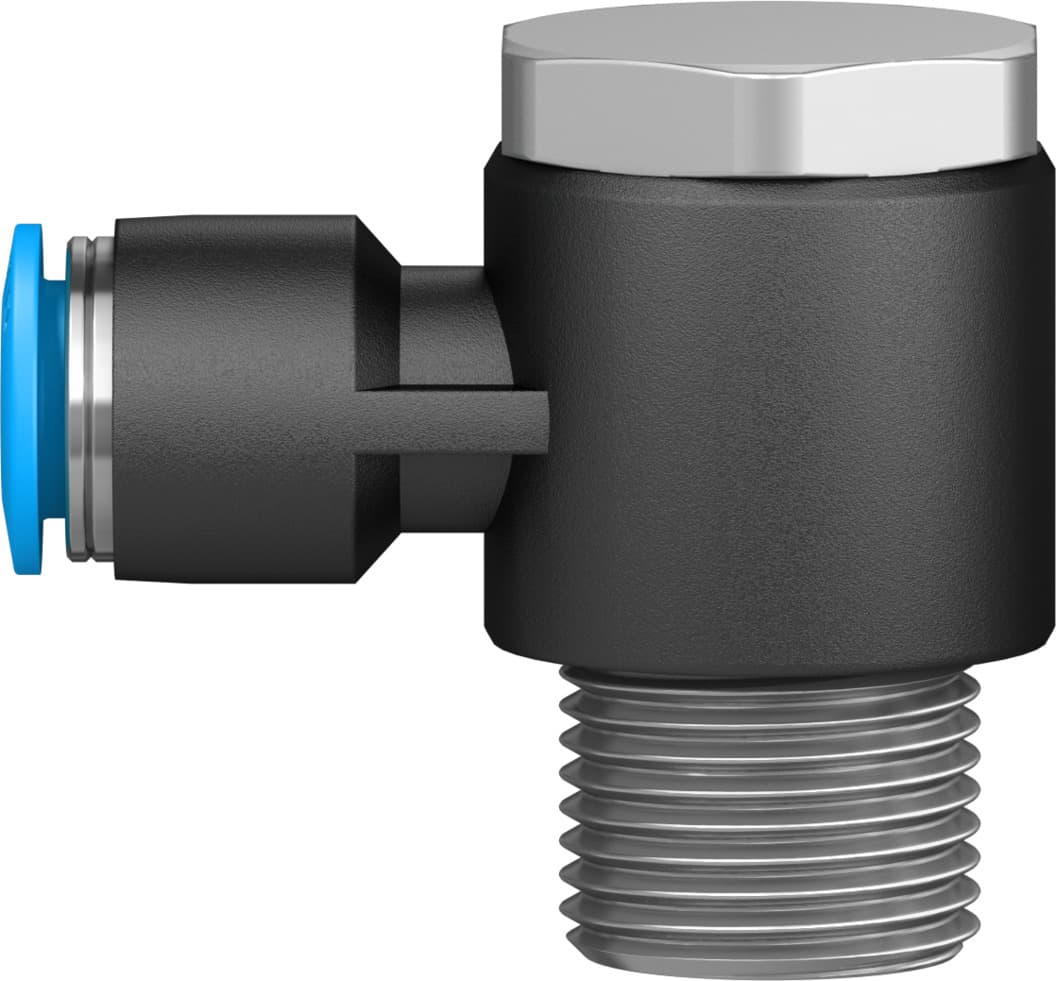

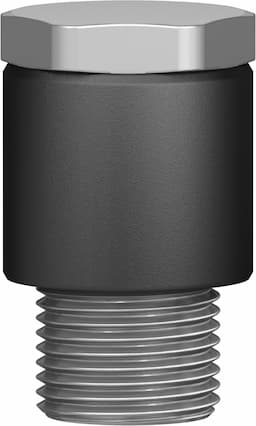

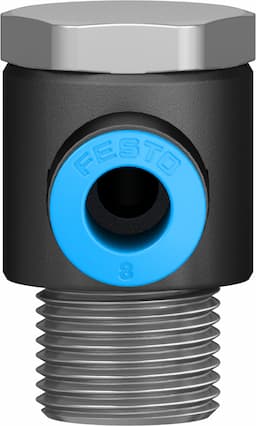

Festo QSLV-3/8-8 Push-in L-Fitting | High-Quality Pneumatic Fittings

Selling Points

1The QSLV-3/8-8 push-in L-fitting offers a 360° orientable design, ensuring flexibility in installation and use.
2With a standard nominal size of 4.2 mm, this fitting is suitable for a wide range of pneumatic applications.
3The fitting features a coating seal type on the screw-in stud, providing reliable sealing performance.
4The QSLV-3/8-8 can be mounted in any position, making it versatile for various installation requirements.
5Made from durable materials, this push-in fitting ensures long-lasting performance in pneumatic systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	6mm
Type of seal on screwed plug	Coating	Mounting position	Any
Design	L-shape	Pack size	10
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 4 according to ISO 14644-1	Ambient temperature	-10°C 80°C
Nominal tightening torque	15.5Nm	Tolerance for nominal tightening torque	± 20%
Product weight	60g	Type of mounting	Hollow bolt with external hex
Pneumatic connection 1	External thread R3/8	Pneumatic connection 2	for pneumatic tubing outside diameter 8 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Hollow bolt material	Brass, nickel-plated
Releasing ring material	POM	Material of tubing seal	NBR
Material of tube retaining claw	High-alloy stainless steel	Manufacturer ID	153091

Specifications may be subject to change without notice
