Product Model

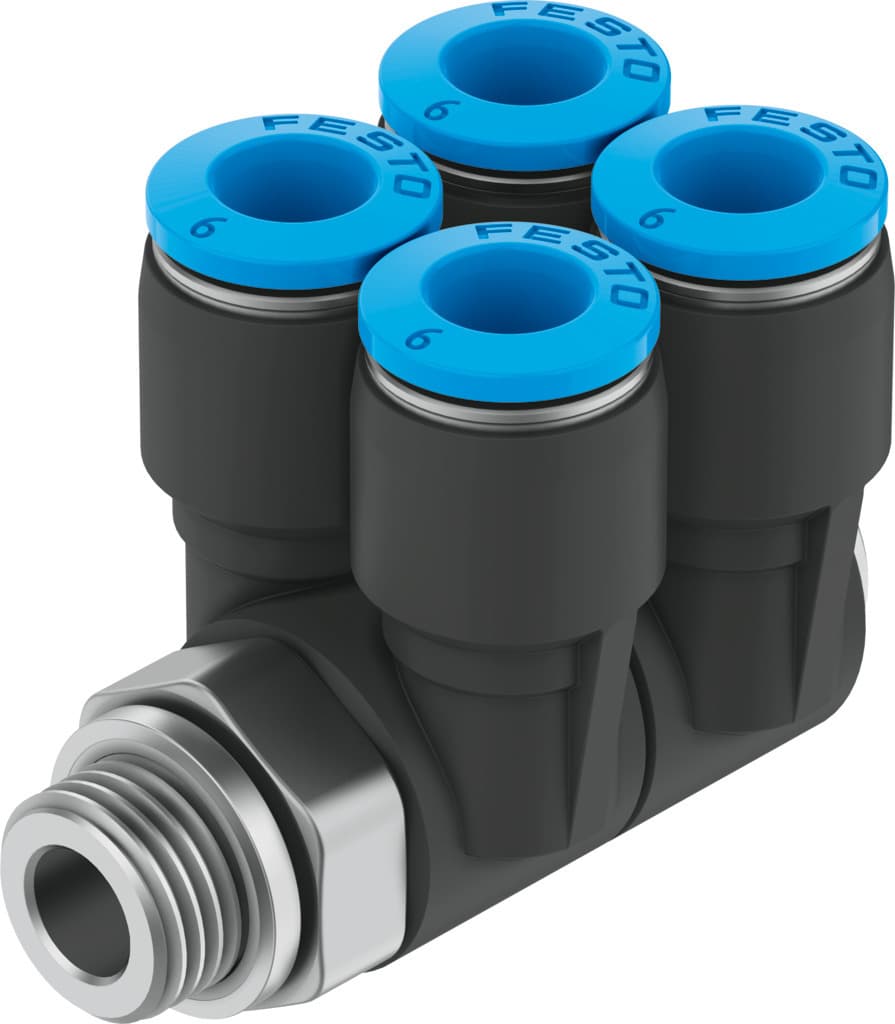

qslv4-g1/8-6
Selling Points
- 1The Festo QSLV4-G1/8-6 is a 4-fold, 360° orientable pneumatic distributor designed for versatile applications in automation tasks. Its standard nominal size of 2.9 mm ensures precise fitting and reliable performance.
- 2This product features a push-pull principle, making it easy to assemble and use. The sealing ring ensures a secure connection, providing a reliable seal even under varying operating pressures.
- 3The Festo QSLV4-G1/8-6 supports both compressed air and water as operating media, with a maximum operating pressure of 0.6 MPa at 0 - 50 °C for water and up to 1.4 MPa for compressed air.
- 4This product is made from high-quality materials, including PBT for the housing, nickel-plated brass for the hollow bolt, and POM for the release ring. It is also RoHS-compliant, ensuring environmental safety.
- 5The Festo QSLV4-G1/8-6 is designed for a wide range of applications, including those requiring high temperatures up to 80 °C and ambient temperatures from -10 °C to 80 °C. It is also corrosion-resistant with a CRC 1 rating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2.9mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Structural design | Push-pull principle | Pack size | 1 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 5.4Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 34g | No. of outlets | 4 |
No. of supply lines | 1 | Pneumatic connection 1 | External thread G1/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Hollow bolt material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 186244 |
Specifications may be subject to change without notice
