Product Model
qslv6-3/8-12
Selling Points

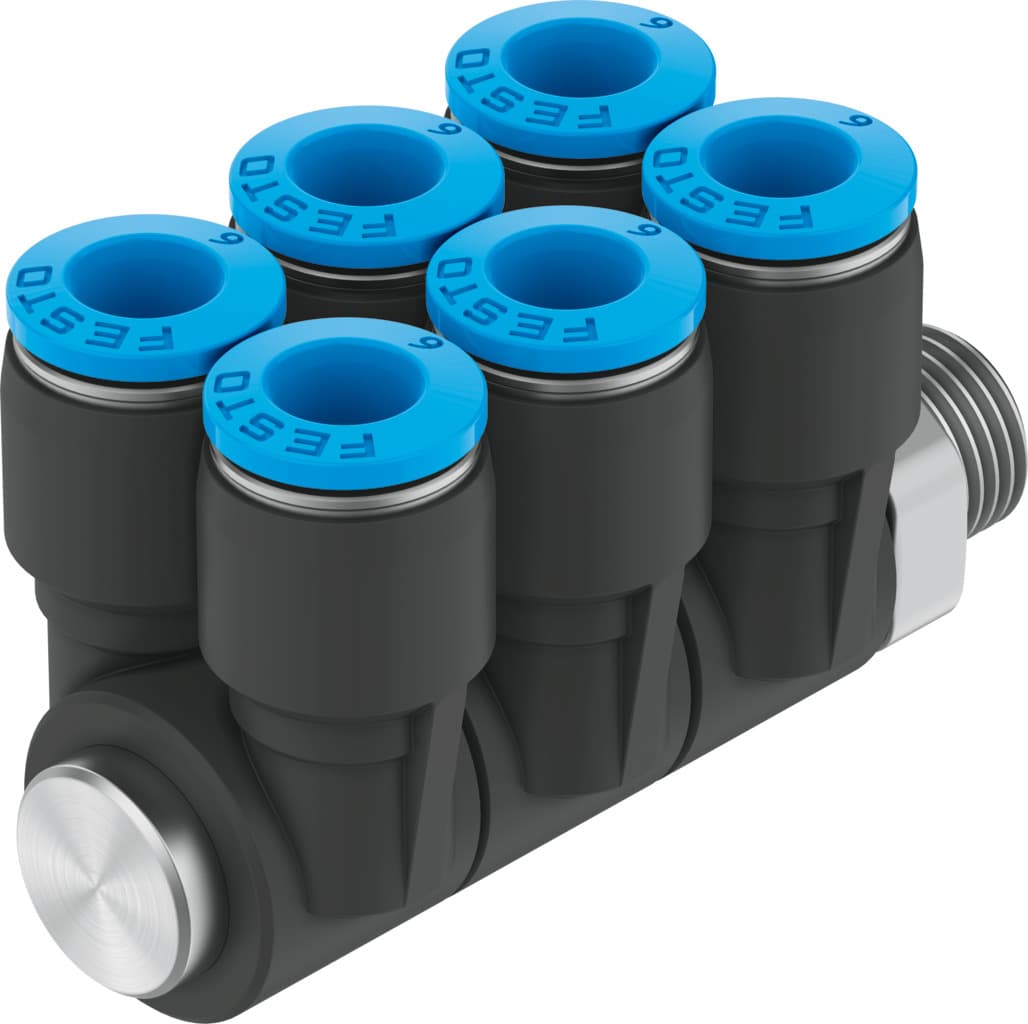

- 1The Festo QSLV6-3/8-12 multiple distributor offers 6 outputs and 1 supply line, making it versatile for various pneumatic applications.
- 2Equipped with a male thread R3/8 connection, this fitting is designed for easy integration with tubing and other pneumatic components.
- 3The QSLV6-3/8-12 operates within a temperature range of -10°C to 80°C and supports operating pressures up to 6 bar, ensuring reliable performance in diverse environments.
- 4Made from high-quality materials, including PBT for the housing, nickel-plated brass for the hollow bolt, and NBR for the tubing seal, this fitting ensures durability and corrosion resistance.
- 5The QSLV6-3/8-12 is RoHS-compliant and meets VDMA24364-B1/B2-L standards, making it suitable for a wide range of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Structural design | Push-pull principle | Pack size | 1 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 205g | No. of outlets | 6 |
No. of supply lines | 1 | Pneumatic connection 1 | External thread R3/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Hollow bolt material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153249 |
Specifications may be subject to change without notice
