Product Model
qslv6-g1/8-4
Selling Points

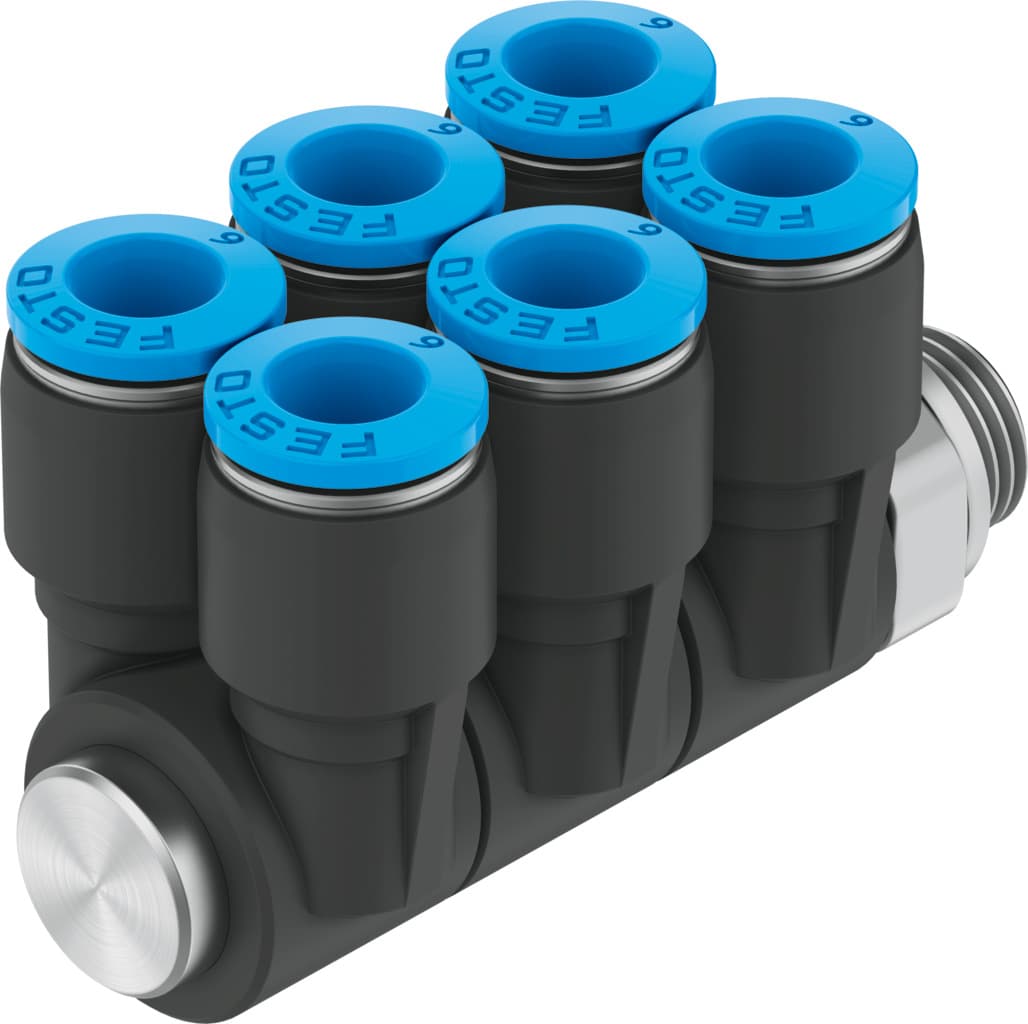

- 1The Festo QSLV6-G1/8-4 is a 6-fold, 360° orientable multiple distributor with a male thread and internal hexagon, ensuring versatile and precise connections in industrial automation systems.
- 2This product operates within a pressure range of -13.8 ~ 87 PSI (-0.95 ~ 6 bar) and a temperature range of -10°C ~ 80°C, making it suitable for various industrial applications.
- 3The QSLV6-G1/8-4 features a nitrile seal, providing excellent protection against moisture and preventing mold and mildew growth, ensuring the longevity of the product.
- 4Designed with a push/pull principle, this fitting allows for easy assembly in any position, enhancing its flexibility in different industrial settings.
- 5The Festo QSLV6-G1/8-4 is part of the industrial automation and control systems category, supporting applications in computer software, flexible manufacturing systems, X-Ray inspection machines, and robotics.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2.3mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Structural design | Push-pull principle | Pack size | 1 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 5.4Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 39g | No. of outlets | 6 |
No. of supply lines | 1 | Pneumatic connection 1 | External thread G1/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Hollow bolt material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 186253 |
Specifications may be subject to change without notice
