Product Model
qslv-g1/2-12
Selling Points

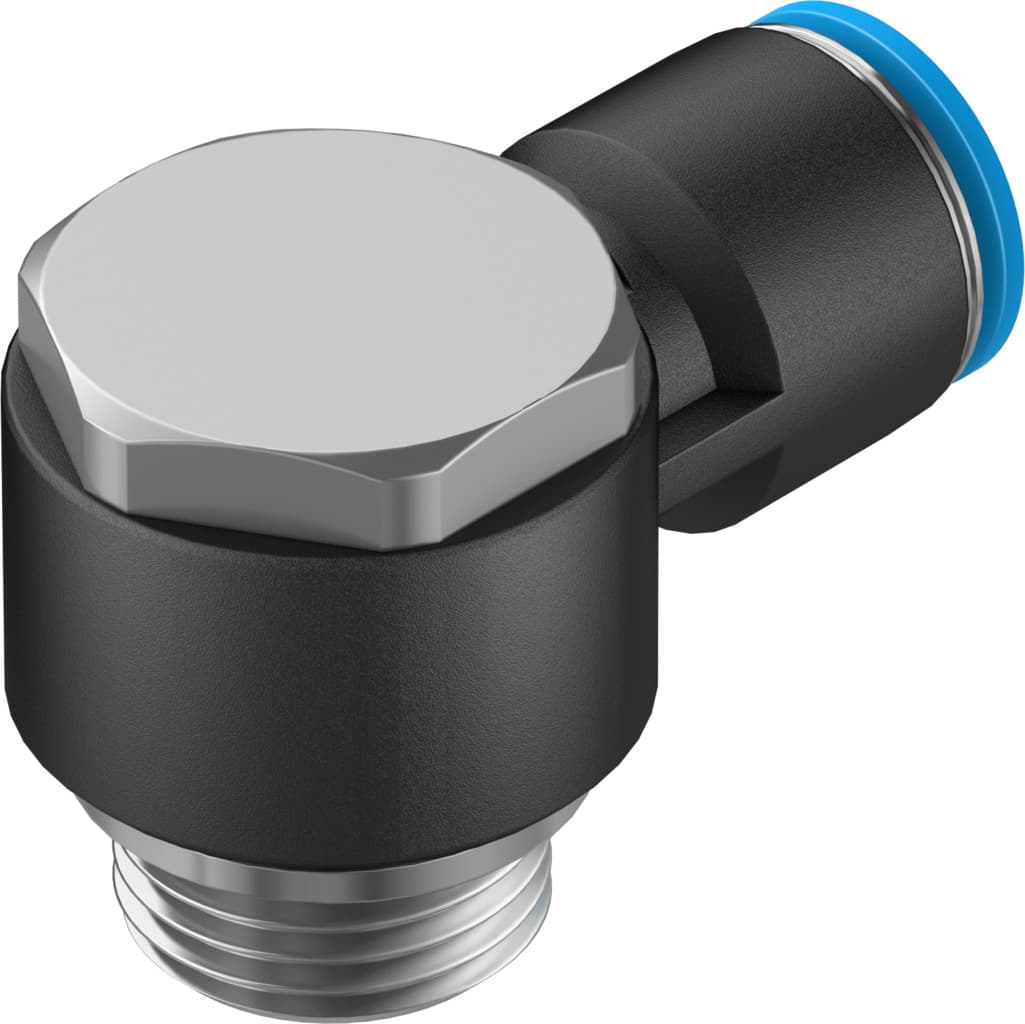

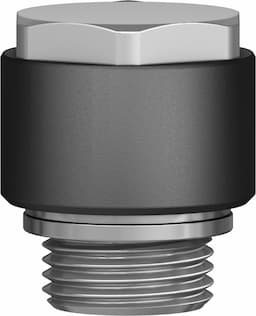

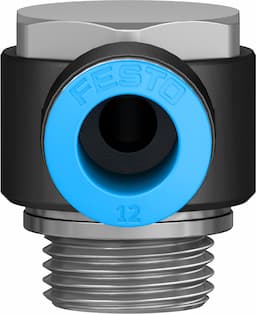

- 1The Festo QSLV-G1/2-12 is a reliable pneumatic fitting designed for efficient and secure connections. It features a push-pull principle and a sealing ring for optimal performance.
- 2This fitting is compatible with compressed air and water, meeting ISO 8573-1:2010 standards. It operates within a temperature range of -10 °C to 80 °C, ensuring versatility in various environments.
- 3The QSLV-G1/2-12 has a nominal size of 8.7 mm and a nominal torque of 26 Nm, with a tolerance of ±20%. It is ideal for applications requiring precise and durable connections.
- 4The fitting is made from high-quality materials, including PBT for the housing and nickel-plated brass for the hollow bolt. It also features a POM release ring, ensuring corrosion resistance and durability.
- 5The QSLV-G1/2-12 is designed for use in cleanroom environments, meeting Class 4 standards according to ISO 14644-1. It is perfect for applications in industries requiring high cleanliness and precision.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8.7mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 26Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 99g | Type of mounting | Hollow bolt with external hex |
Pneumatic connection 1 | External thread G1/2 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186146 |
Specifications may be subject to change without notice
