Product Model

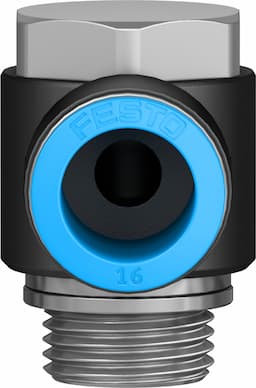

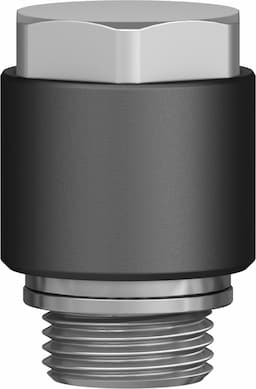

qslv-g1/2-16
Selling Points

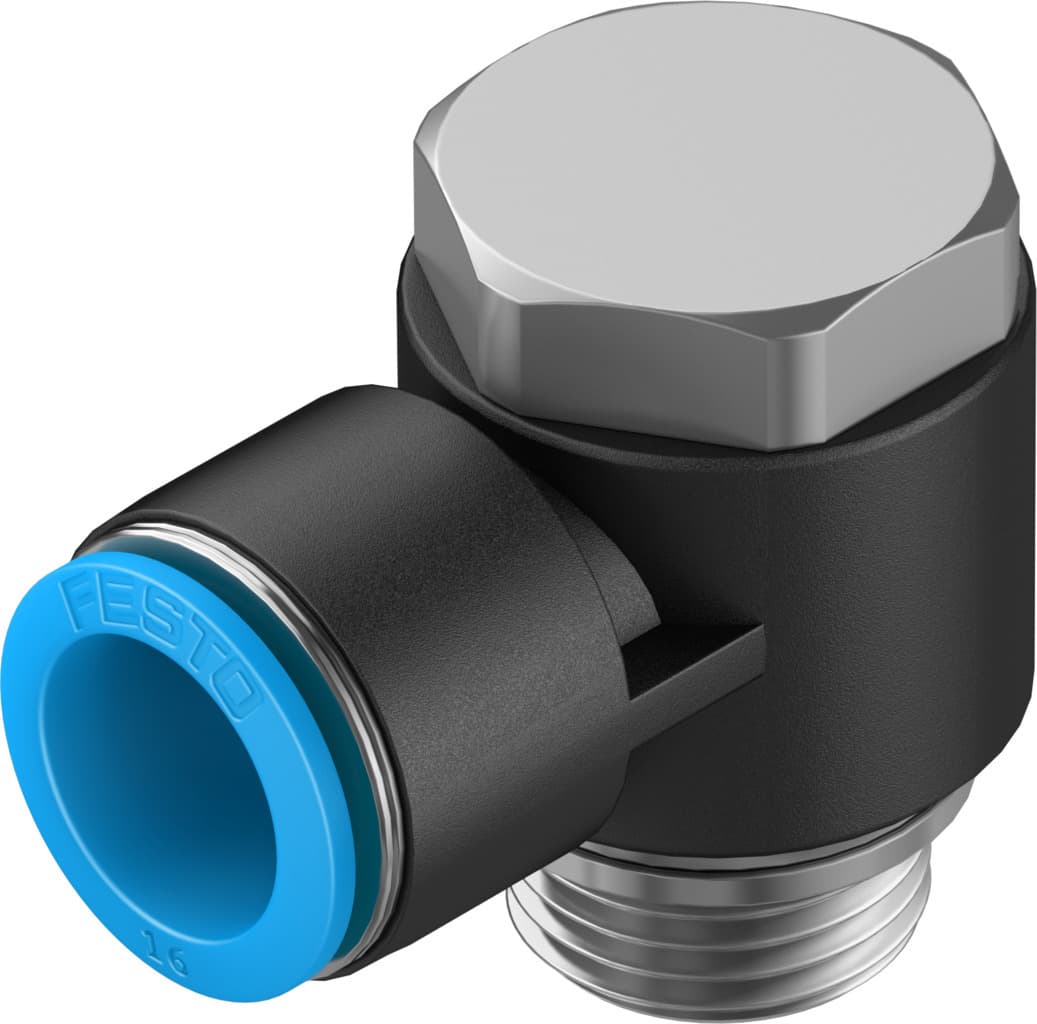

- 1The Festo QSLV-G1/2-16 push-in L-fitting is designed for standard pneumatic applications, featuring a nominal size of 13 mm and a 360° orientable design.
- 2This fitting is made from PBT (Polybutylene Terephthalate) and includes a sealing ring for reliable sealing, ensuring high-pressure operations up to 14 bar.
- 3The QSLV-G1/2-16 is compatible with tubing outside diameters of 16 mm and supports both compressed air and water (liquid, ice-free) as operating mediums.
- 4It offers optional mounting positions and an L-shape design, making it versatile for various pneumatic systems. The fitting is also RoHS-compliant and lead-free.
- 5The Festo QSLV-G1/2-16 push-in L-fitting is suitable for cleanroom environments (Class 4 according to ISO 14644-1) and meets VDMA24364-B1/B2-L standards for cleanroom applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 13mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 26Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 115g | Type of mounting | Hollow bolt with external hex |
Pneumatic connection 1 | External thread G1/2 | Pneumatic connection 2 | for pneumatic tubing outside diameter 16 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186147 |
Specifications may be subject to change without notice
