Product Model
qslv-g1/4-10-50
Selling Points

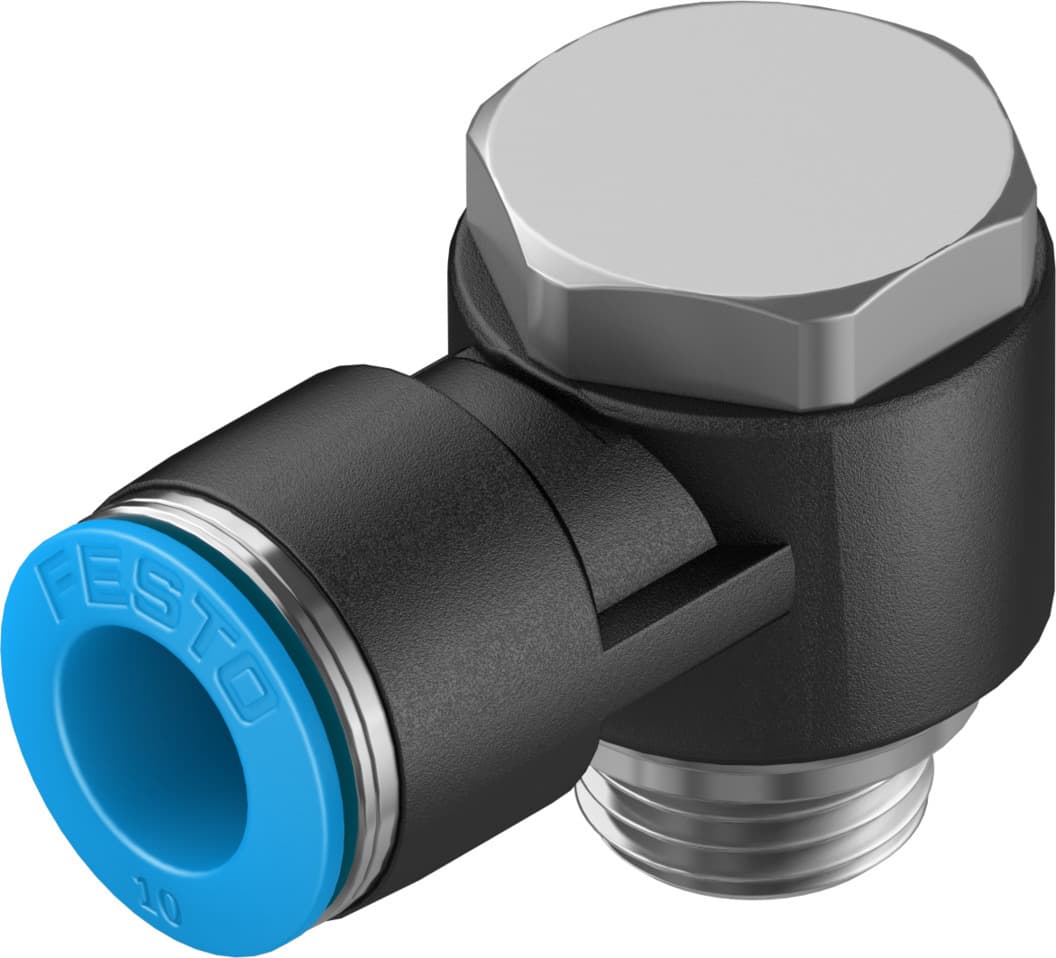

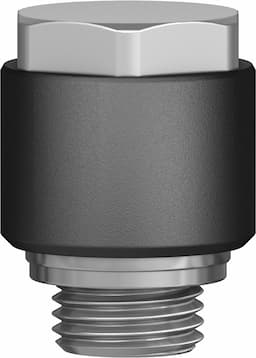

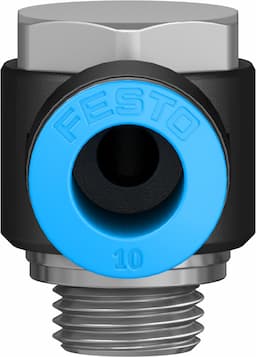

- 1The Festo QSLV-G1/4-10-50 push-in L-fitting is designed with a standard size of 7 mm and a nominal size of 5.3 mm, ensuring precise and reliable connections in various pneumatic systems.
- 2This L-fitting features a sealing ring type of seal on the screwed plug, providing a secure and leak-free operation. It is also compatible with compressed air to ISO 8573-1:2010.
- 3The QSLV-G1/4-10-50 offers optional mounting positions, allowing for flexible installation in different applications. Its L-shape design makes it easy to integrate into complex pneumatic setups.
- 4With a product weight of 48 grams, this push-in L-fitting is lightweight yet robust, ensuring durability in demanding environments. It operates within a temperature range of -10°C to 80°C.
- 5The Festo QSLV-G1/4-10-50 is RoHS-compliant and made from high-quality materials, including PBT for the housing, nickel-plated brass for the hollow bolt, and POM for the release ring. This ensures low corrosion stress and meets VDMA24364-B1/B2-L LABS (PWIS) conformity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 7mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 50 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 48g | Type of mounting | Hollow bolt with external hex |
Pneumatic connection 1 | External thread G1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132065 |
Specifications may be subject to change without notice
