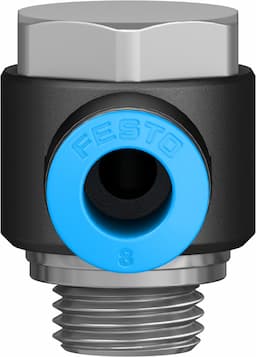

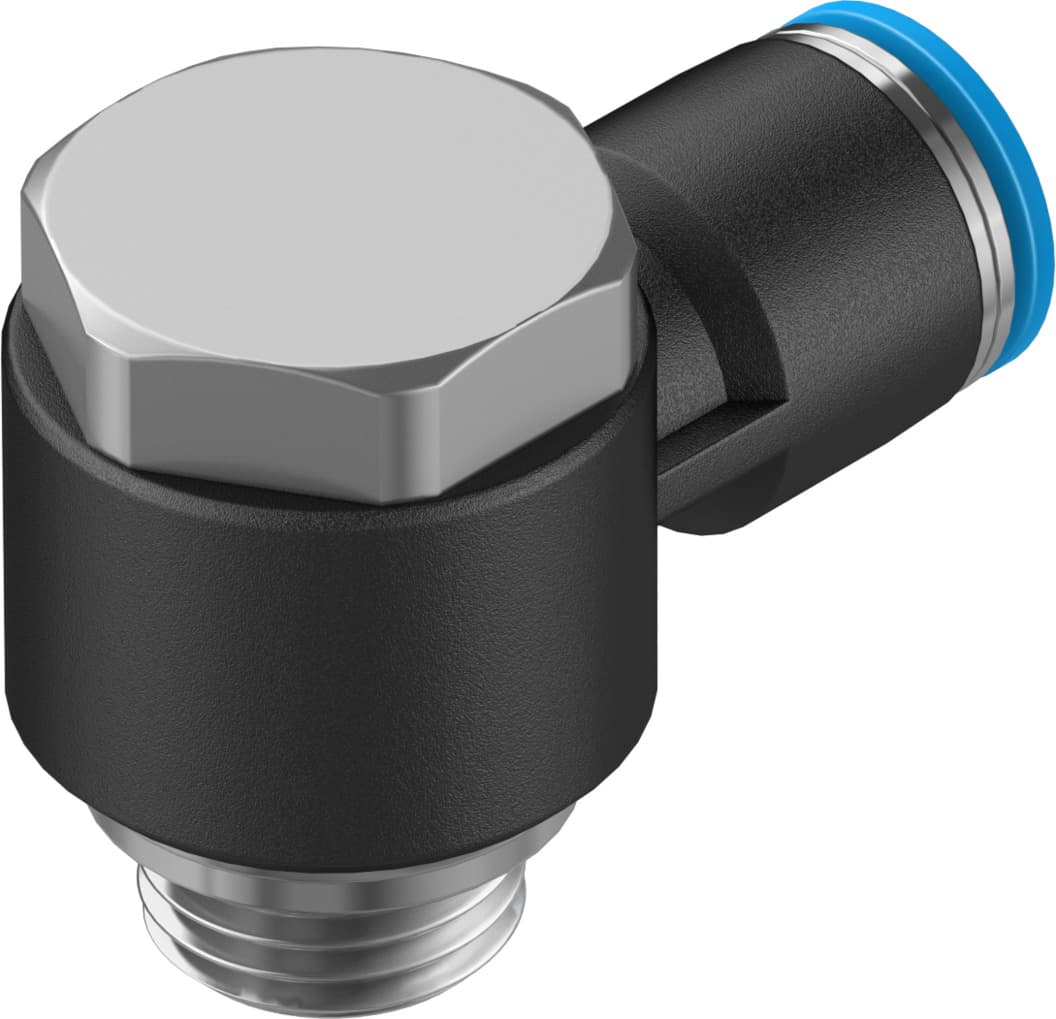

Product Model
qslv-g1/4-8-50
Selling Points
- 1Standard Size and Design: The Festo QSLV-G1/4-8-50 features a standard nominal size of 6 mm and an L-shape design, ensuring easy integration into various pneumatic systems.
- 2Sealing Ring for Secure Connections: Equipped with a sealing ring, this push-in fitting provides secure and leak-free connections, ideal for compressed air and water applications.
- 3Optional Mounting Position: The QSLV-G1/4-8-50 offers optional mounting positions, allowing for flexibility in installation and reducing the need for additional adapters.
- 4High Operating Pressure Range: This fitting supports a wide operating pressure range, from -0.095 MPa to 0.6 MPa (or -13.775 psi to 87 psi), making it suitable for various industrial applications.
- 5Low Corrosion Stress and Cleanroom Compliance: The QSLV-G1/4-8-50 is designed with low corrosion stress and meets Class 4 cleanroom standards according to ISO 14644-1, ensuring reliability in clean environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 50 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 45g | Type of mounting | Hollow bolt with external hex |
Pneumatic connection 1 | External thread G1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132064 |
Specifications may be subject to change without notice
