Product Model
qslv-g1/8-8-50
Selling Points

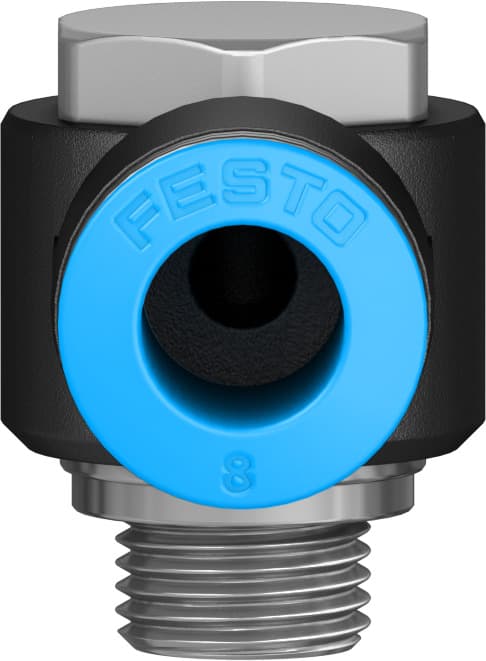

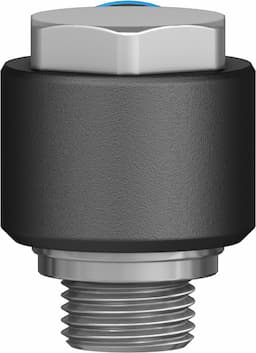

- 1The Festo QSLV-G1/8-8-50 push-in L-fitting is designed for reliable pneumatic connections, featuring a male thread G1/8 and a push-in connection for 8 mm tubing.
- 2This fitting is suitable for both compressed air and water applications, ensuring compatibility with ISO 8573-1:2010 standards.
- 3The QSLV-G1/8-8-50 exhibits low corrosion stress, classified as CRC 1, making it ideal for various industrial environments.
- 4The product operates within a wide temperature range of -10°C to 80°C, ensuring flexibility in different working conditions.
- 5The push-pull principle design allows for easy assembly and disassembly, reducing maintenance time and increasing efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.6mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 50 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 5.4Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 25g | Type of mounting | Hollow bolt with external hex |
Pneumatic connection 1 | External thread G1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132062 |
Specifications may be subject to change without notice
