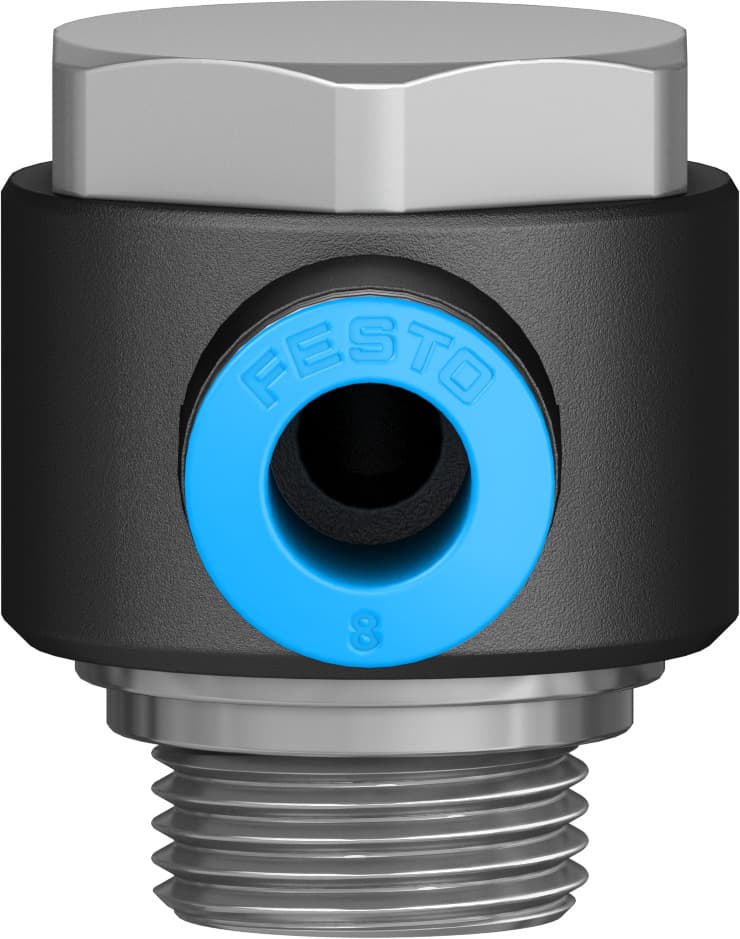

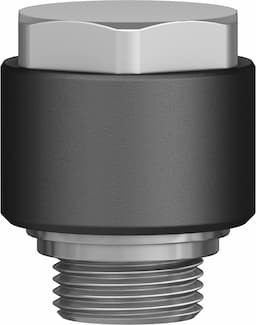

Product Model
qslv-g3/8-8
Selling Points
- 1The QSLV-G3/8-8 push-in L-fitting offers a 360° orientable design, allowing for easy installation in any position.
- 2Constructed with RoHS-compliant PBT housing, POM release ring, and NBR tube seal for durability and reliability.
- 3Classified as CRC 1, this fitting exhibits low corrosion stress, ensuring long-lasting performance in various environments.
- 4Compatible with operating pressures from -0.95 to 6 bar and temperature-dependent pressures up to 14 bar, making it suitable for diverse applications.
- 5Featuring a push-pull principle and internal hexagon mounting, the QSLV-G3/8-8 is easy to assemble and disassemble as needed.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 71g | Type of mounting | Hollow bolt with external hex |
Pneumatic connection 1 | External thread G3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186142 |
Specifications may be subject to change without notice
