Product Model
qsm-1/8-4-100
Selling Points

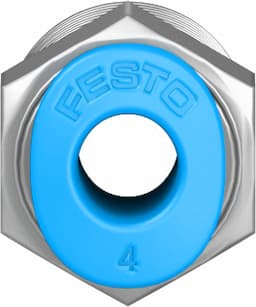

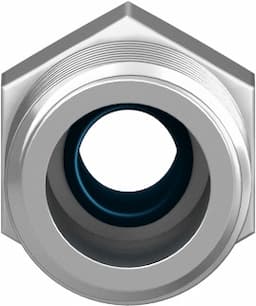

- 1The Festo QSM-1/8-4-100 push-in fitting features a nominal width of 2.9 mm, making it compact and suitable for miniaturized pneumatic systems.
- 2This fitting is designed with a straight design and operates under a push-pull principle, ensuring easy and reliable connection management.
- 3The QSM-1/8-4-100 is engineered to handle operating pressures ranging from -0.095 MPa to 0.6 MPa, or -0.95 bar to 6 bar, making it versatile for various pneumatic applications.
- 4The fitting is compatible with compressed air as per ISO 8573-1:2010 and can operate with oil lubrication, enhancing its durability and performance.
- 5The QSM-1/8-4-100 is constructed from brass with a nickel-plated housing and features a releasing ring made of POM, ensuring high corrosion resistance and reliability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2.9mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Straight design | Pack size | 100 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 6g | Type of mounting | External hexagon, AF 10 |
Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130755 |
Specifications may be subject to change without notice
