Product Model
qsm-3-2
Selling Points

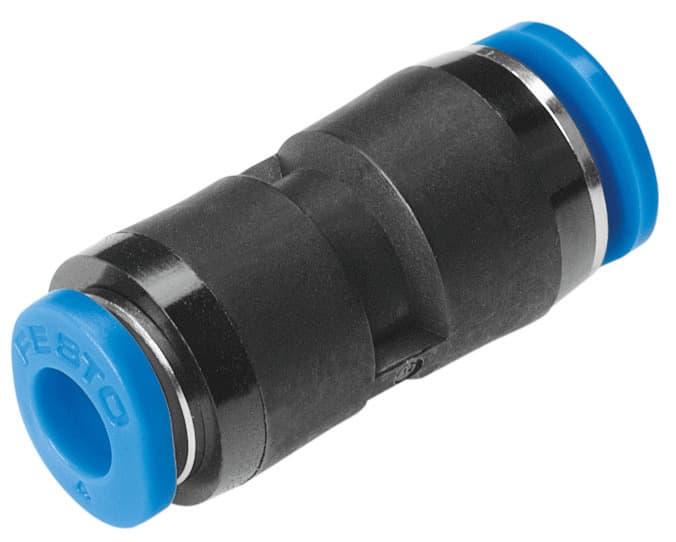

- 1The Festo QSM-3-2 push-in fitting ensures secure and reliable connections in pneumatic systems, making it a crucial component for modern manufacturing environments.
- 2Crafted with precision engineering and durable materials like PBT, POM, and high-alloy stainless steel, this fitting offers maximum flexibility and abrasion resistance.
- 3With a temperature range of -10°C to 80°C and operating pressures from -0.95 bar to 6 bar, the QSM-3-2 meets all requirements even for standard applications with increased pressure and temperature ranges.
- 4The QSM-3-2 is designed with a straight shape and push-pull principle, making it easy to install and optimize bending radius for smooth operation.
- 5Compliant with ISO 8573-1:2010 standards and featuring a blue release ring, this fitting is suitable for a wide range of tasks and attractively priced for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 1.1mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Product weight | 1g | Pneumatic connection 1 | for pneumatic tubing outside diameter 3 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 2 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 133029 |
Specifications may be subject to change without notice
