Product Model
qsm-4-3-100
Selling Points

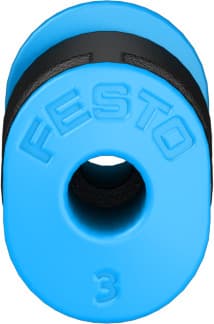

- 1The Festo QSM-4-3-100 push-in connector ensures secure connections between 4 mm and 3 mm pneumatic tubing, ideal for various industrial applications.
- 2This connector can be mounted in any position, offering flexibility in system design and installation.
- 3It operates within a wide pressure range (-0.95 to 6 bar) and up to 14 bar under temperature-dependent conditions, making it suitable for demanding environments.
- 4With a low corrosion stress class (CRC 1) and compliance with RoHS standards, the QSM-4-3-100 is designed for long-lasting performance in various industrial settings.
- 5The push-pull principle and lubricated operation capability make it easy to use and maintain, reducing downtime and increasing efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 1.7mm |
Mounting position | Any | Design | Straight design |
Pack size | 100 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Product weight | 2.1g |
Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 3 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130760 |
Specifications may be subject to change without notice
