Product Model
qsm-6-100
Selling Points

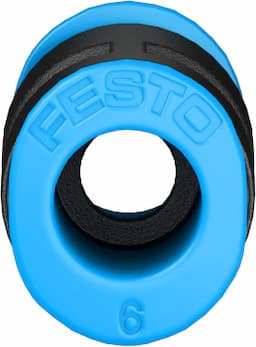

- 1The Festo QSM-6-100 is a miniature push-in connector designed for pneumatic applications, featuring a nominal size of 3.7 mm and operating pressure up to 6 bar.
- 2This connector is made from high-quality materials, including PBT for the body and POM for the release ring, ensuring durability and corrosion resistance.
- 3The QSM-6-100 is easy to install due to its optimized bending radius and push-pull design, making it suitable for a wide range of tasks.
- 4The connector operates within a temperature range of -10°C to 80°C and is compatible with compressed air according to ISO 8573-1:2010, making it versatile for various environments.
- 5The Festo QSM-6-100 is attractively priced and highly resistant to abrasion, making it an excellent choice for dynamic applications where reliability is crucial.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 3.7mm |
Mounting position | Any | Design | Straight design |
Pack size | 100 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Product weight | 4g |
Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130759 |
Specifications may be subject to change without notice
