Product Model
qsm-6h-4-100
Selling Points

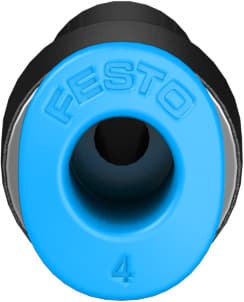

- 1The Festo QSM-6H-4-100 push-in connector is designed for mini pneumatic systems, offering a compact size of 2.6 mm nominal width.
- 2This connector features an optional mounting position, allowing for flexible installation in various pneumatic setups.
- 3Utilizing a push-pull principle, the QSM-6H-4-100 ensures easy and secure connection and disconnection of pneumatic tubes.
- 4The connector supports operating pressures from -0.95 to 6 bar, making it suitable for a variety of pneumatic applications.
- 5Constructed with high-quality materials, including PBT housing and POM release ring, ensuring durability and reliability in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2.6mm |
Mounting position | Any | Design | Straight design |
Pack size | 100 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Product weight | 2.4g |
Pneumatic connection 1 | Push-in sleeve ? 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130763 |
Specifications may be subject to change without notice
