Product Model
qsmc-2h
Selling Points

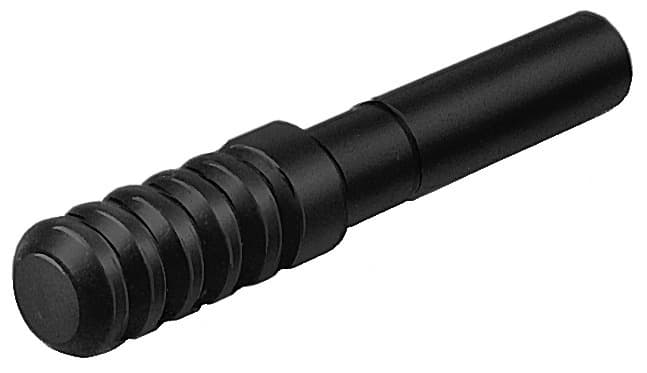

- 1The Festo QSMC-2H blanking plug is designed for mini pneumatic connections, offering a compact size that fits into tight spaces.
- 2This component features a push-in sleeve with a diameter of 2 mm, ensuring easy and secure connections.
- 3The QSMC-2H operates within a wide temperature range of -10°C to 80°C, making it suitable for various industrial environments.
- 4The blanking plug is made from PBT plastic, which is RoHS-compliant and provides excellent corrosion resistance (CRC class 1).
- 5The QSMC-2H supports operating pressures up to 6 bar (-0.95 to 6 bar) and temperature-dependent pressures up to 14 bar, ensuring reliable performance in different conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Mounting position | Any |
Design | Blanking plug | Pack size | 10 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Product weight | 0.1g |
Pneumatic connection 1 | push-in sleeve ? 2 mm | Note on materials | RoHS-compliant |
Housing material | PBT | Manufacturer ID | 133036 |
Specifications may be subject to change without notice
