Product Model
qsmc-3
Selling Points

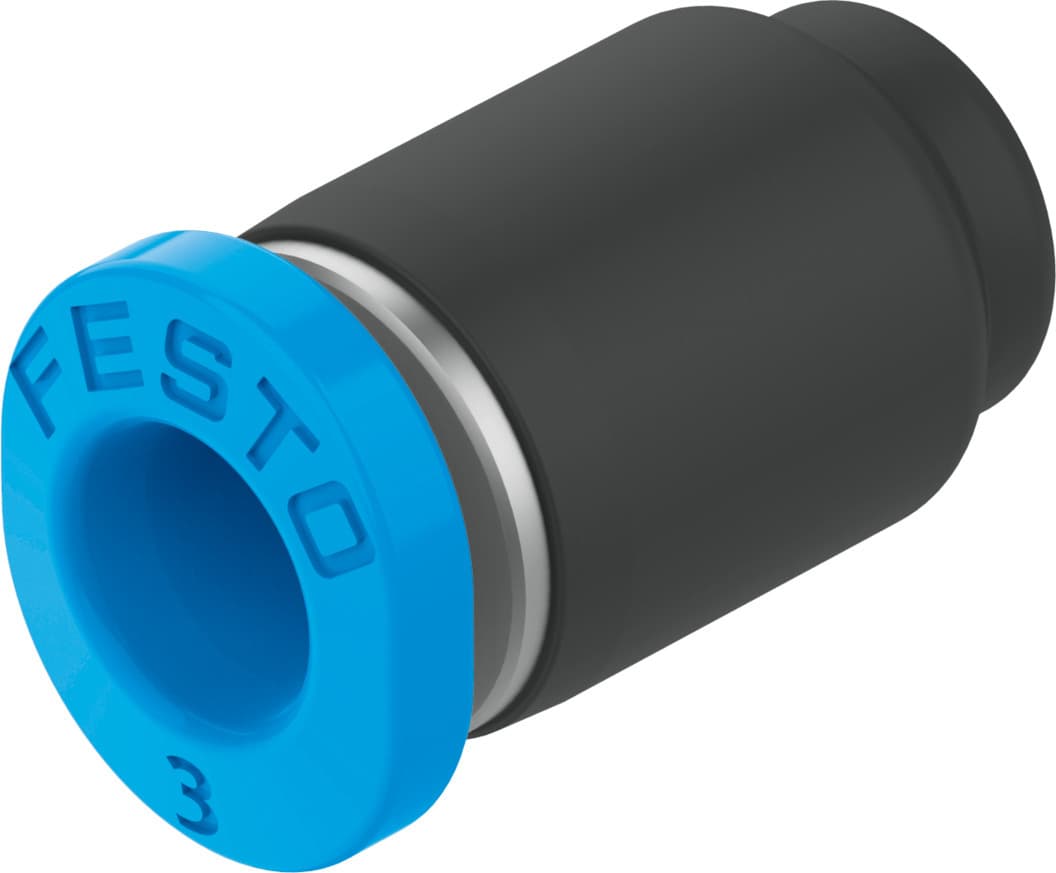

- 1The Festo QSMC-3 is a mini push-in cap designed for compact pneumatic applications, ensuring efficient and reliable connections in tight spaces.
- 2This cap features a push-pull principle and is available in packs of 10, making it ideal for bulk installations in pneumatic systems.
- 3The QSMC-3 operates within a temperature range of -10°C to 80°C and supports pressures up to 0.6 MPa, making it versatile for various environmental conditions.
- 4The cap is made from RoHS-compliant materials, including PBT for the housing and POM for the release ring, ensuring high-quality construction and compliance with environmental regulations.
- 5With its lubricated operation capability and corrosion resistance class CRC 1, the Festo QSMC-3 is suitable for applications requiring low corrosion stress and smooth operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Mounting position | Any |
Design | Blanking plug | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Product weight | 0.5g | Pneumatic connection 1 | for pneumatic tubing outside diameter 3 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153381 |
Specifications may be subject to change without notice
