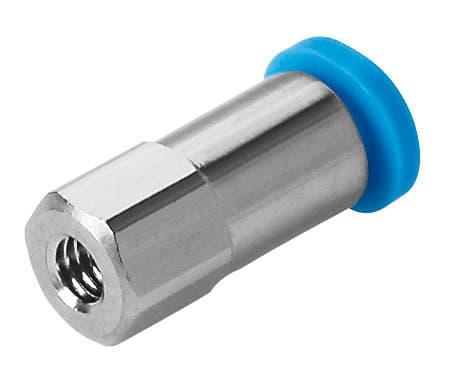

Festo QSMF-M5-3 Push-in Fitting: Miniature, High-Performance Pneumatic Connection

Selling Points

1The QSMF-M5-3 is a compact push-in fitting designed for miniature pneumatic applications, ensuring efficient use of space in your system.
2This fitting supports a wide operating pressure range of -0.095 MPa to 0.6 MPa (or -13.775 psi to 87 psi) and up to 1.4 MPa (or 203 psi) under temperature-dependent conditions.
3Equipped with a sealing ring on the screwed plug, providing reliable and leak-free connections in your pneumatic system.
4Offers flexibility with an optional mounting position, allowing for versatile installation in various applications.
5Features a low corrosion stress classification (CRC 1) and meets VDMA24364-B1/B2-L standards, ensuring durability in demanding environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	1.9mm
Type of seal on screwed plug	Sealing ring	Mounting position	Any
Design	Straight design	Pack size	10
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 80°C
Nominal tightening torque	1.2Nm	Tolerance for nominal tightening torque	± 20%
Product weight	4.3g	Type of mounting	External hexagon, AF 8
Pneumatic connection 1	Internal thread M5	Pneumatic connection 2	for pneumatic tubing outside diameter 3 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	Brass, nickel-plated	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	153309
