Product Model

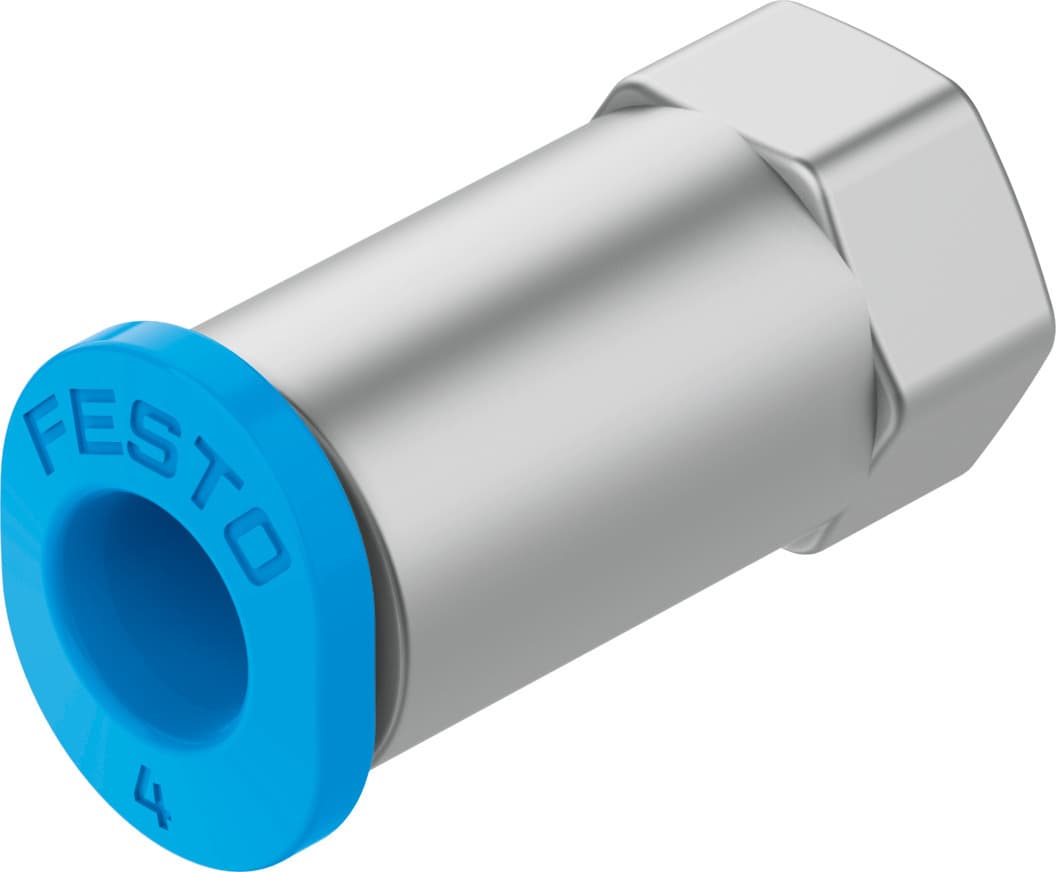

qsmf-m5-4
Selling Points
- 1The Festo QSMF-M5-4 push-in fitting offers a reliable and efficient pneumatic connection with a nominal size of 1.8 mm, ensuring precise and consistent airflow in various industrial applications.
- 2This push-in fitting is designed for use with compressed air to ISO 8573-1:2010, making it suitable for a wide range of pneumatic systems and ensuring compliance with industry standards.
- 3The QSMF-M5-4 features a sealing ring for the screwed plug, providing a secure seal and minimizing the risk of air leaks, which is crucial for maintaining system performance and efficiency.
- 4With an operating pressure range of -0.95 bar to 6 bar (-13.775 psi to 87 psi), this fitting is versatile and can be used in various operating conditions, from low to high pressure applications.
- 5The push-in fitting is made from high-quality materials, including brass with a nickel-plated housing and a POM release ring, ensuring durability and resistance to corrosion, making it a reliable choice for long-term use in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 1.8mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 1.2Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 4.5g | Type of mounting | External hexagon, AF 8 |
Pneumatic connection 1 | Internal thread M5 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153311 |
Specifications may be subject to change without notice
