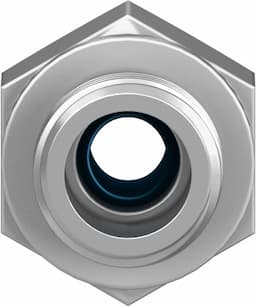

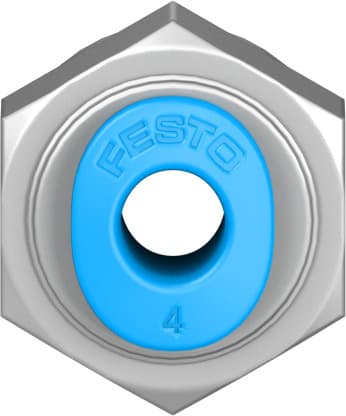

Festo QSM-G1/8-4 Push-in Fitting: High-Quality Pneumatic Connector

Selling Points

1The Festo QSM-G1/8-4 push-in fitting is designed for confined spaces, making it perfect for applications where space is limited.
2This fitting features a push-pull principle for quick and simple installation, reducing the need for complex tools.
3It operates within a wide temperature range of -10°C to +80°C and supports air pressures up to 14 bar, ensuring reliability in various conditions.
4Made from robust, solid nickel-plated brass, this fitting offers high resistance to corrosion, ensuring durability in demanding environments.
5Available with a variety of thread and diameter connector sizes, the Festo QSM-G1/8-4 is versatile and can be used in various pneumatic applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	2.9mm
Type of seal on screwed plug	Sealing ring	Mounting position	Any
Design	Straight design	Pack size	10
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 80°C
Nominal tightening torque	5.4Nm	Tolerance for nominal tightening torque	± 20%
Product weight	9.4g	Type of mounting	External hexagon, AF 13
Pneumatic connection 1	External thread G1/8	Pneumatic connection 2	for pneumatic tubing outside diameter 4 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	Brass, nickel-plated	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	186264

Specifications may be subject to change without notice
