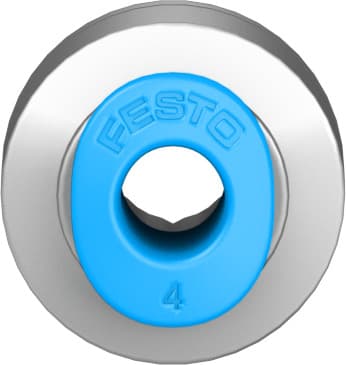

Festo QSM-G1/8-4-I Push-in Fitting | High-Quality Pneumatic Connection

Selling Points

1The Festo QSM-G1/8-4-I push-in fitting is designed for mini pneumatic connections, featuring a nominal size of 3.1 mm and a straight design.
2This fitting includes a sealing ring for secure connections and can be mounted in any position, offering flexibility in installation.
3The QSM-G1/8-4-I is part of the QSM series, known for its reliability and high-quality performance in pneumatic systems.
4With a container size of 10, this fitting is convenient for bulk purchases and easy to manage in inventory.
5The product operates within a temperature range of -10 to 80 °C and supports compressed air in accordance with ISO8573-1:2010, ensuring compatibility with various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	3.1mm
Type of seal on screwed plug	Sealing ring	Mounting position	Any
Design	Straight design	Pack size	10
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 80°C
Nominal tightening torque	5.4Nm	Tolerance for nominal tightening torque	± 20%
Product weight	8.9g	Type of mounting	Internal hexagon, AF 3
Pneumatic connection 1	External thread G1/8	Pneumatic connection 2	for pneumatic tubing outside diameter 4 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	Brass, nickel-plated	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	186266

Specifications may be subject to change without notice
