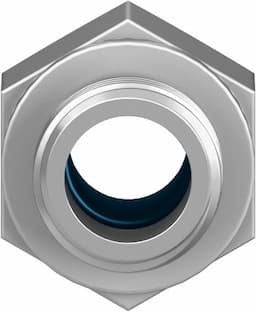

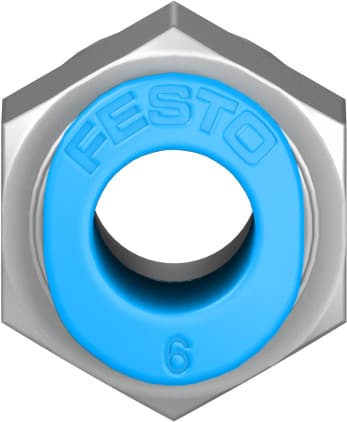

Product Model
qsm-g1/8-6
Selling Points
- 1The Festo QSM-G1/8-6 push-in fitting is designed for mini pneumatic connections, featuring a nominal size of 2.8 mm and a sealing ring for secure operation.
- 2This fitting is versatile, allowing for any mounting position and comes in a pack size of 10 units, making it convenient for bulk applications.
- 3With a nominal tightening torque of 5.4 Nm and a tolerance of ±20%, the QSM-G1/8-6 ensures reliable and consistent connections.
- 4The QSM-G1/8-6 is compatible with compressed air according to ISO 8573-1:2010 and can operate within a temperature range of -10°C to 80°C, making it suitable for various industrial environments.
- 5The product features a low corrosion resistance class (CRC 1) and is made from high-quality materials including brass and nickel-plated housing, ensuring durability and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2.8mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 5.4Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 11g | Type of mounting | External hexagon, AF 13 |
Pneumatic connection 1 | External thread G1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 186265 |
Specifications may be subject to change without notice
