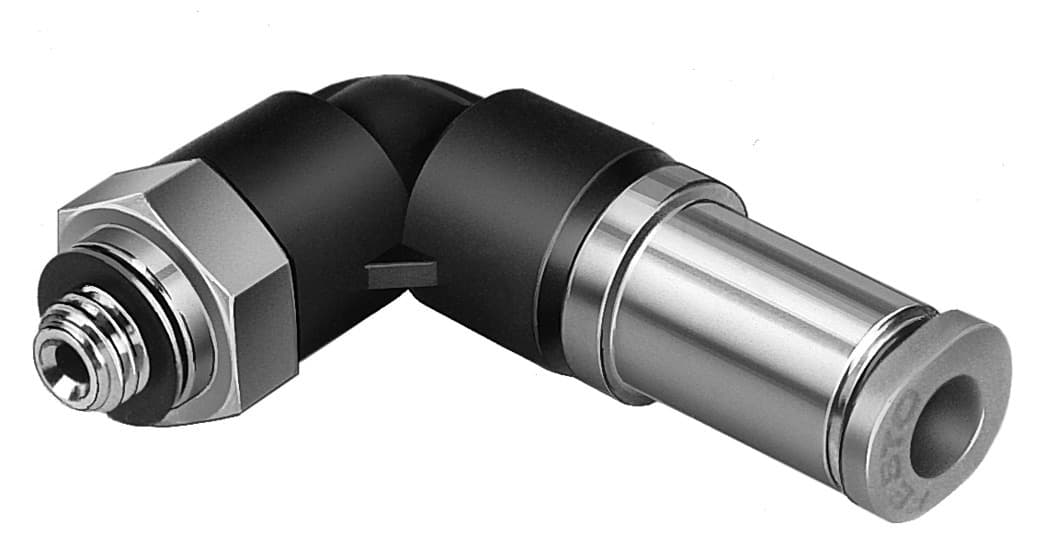

Product Model
qsmkl-m5-6
Selling Points
- 1The Festo QSML-M5-6 features a compact 2.1mm nominal size, making it perfect for space-constrained applications.
- 2Equipped with a sealing ring on the screwed plug, ensuring reliable and leak-free connections in pneumatic systems.
- 3Offers optional mounting positions, providing flexibility in installation and usage.
- 4Designed with a push-pull principle, facilitating easy and secure connection and disconnection.
- 5Supports a wide temperature range (-10°C to 80°C) with temperature-dependent operating pressures from -0.095 MPa to 1.4 MPa, ensuring reliable performance under varying conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 1.7mm |
Approved tubing type | PAN- PAN-MF- PAN-R- PAN-V0- PEN- PFAN- PLN- PTFEN- PUN- PUN-CM- PUN-DUO- PUN-H- PUN-H-DUO- PUN-S- PUN-S-DUO- PUN-V0- | Tubing insertion depth | 13.7mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 1.2Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 10g | Type of mounting | External hexagon, AF 10 |
Pneumatic connection 1 | External thread M5 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153295 |
Specifications may be subject to change without notice
